ADF
222

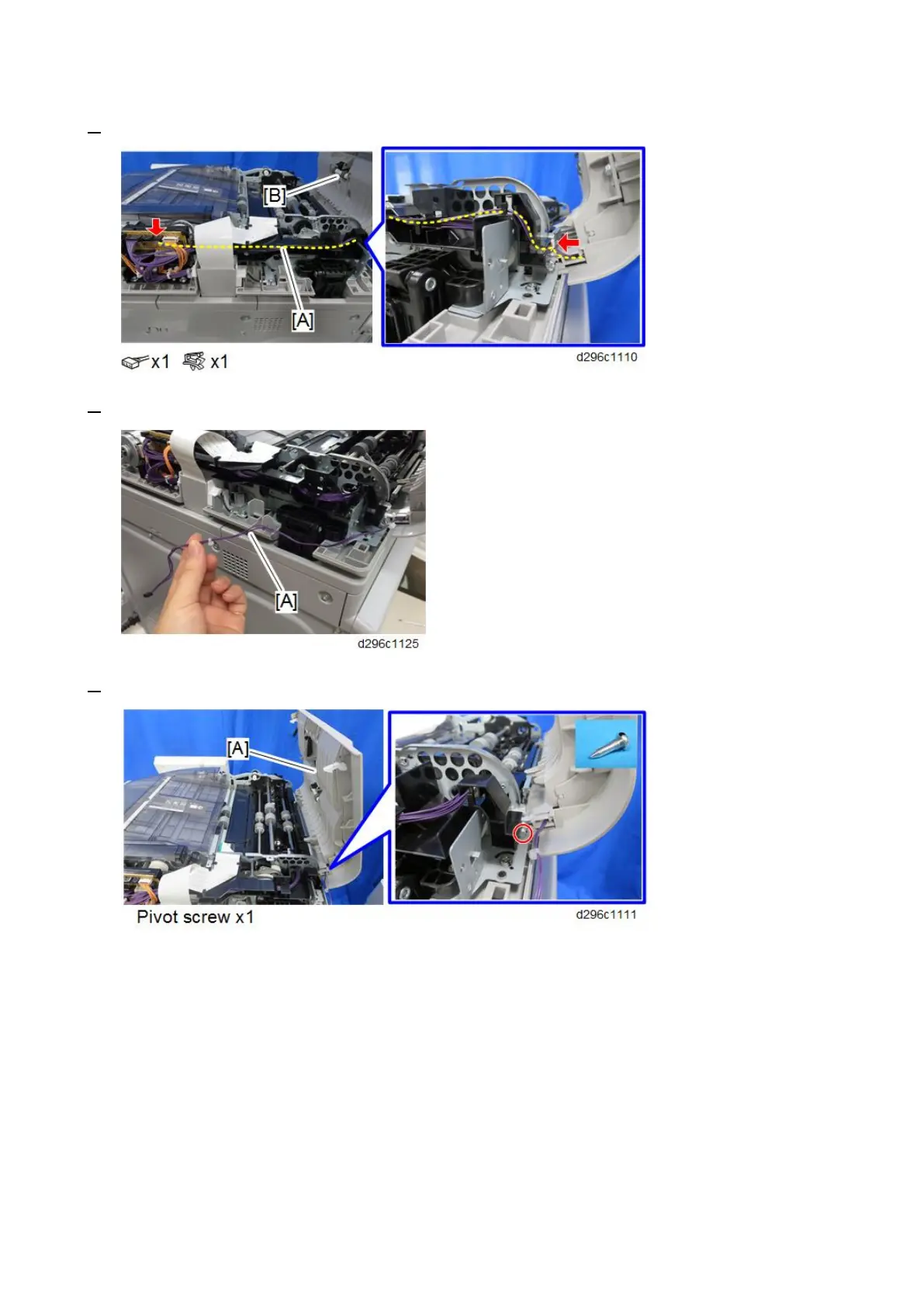

2. Disconnect the harness [A] from the ADF top cover [B], and release the clamp.
3. Remove the harness [A] from the harness guide.
4. Remove the ADF top cover [A].
