ADF
226

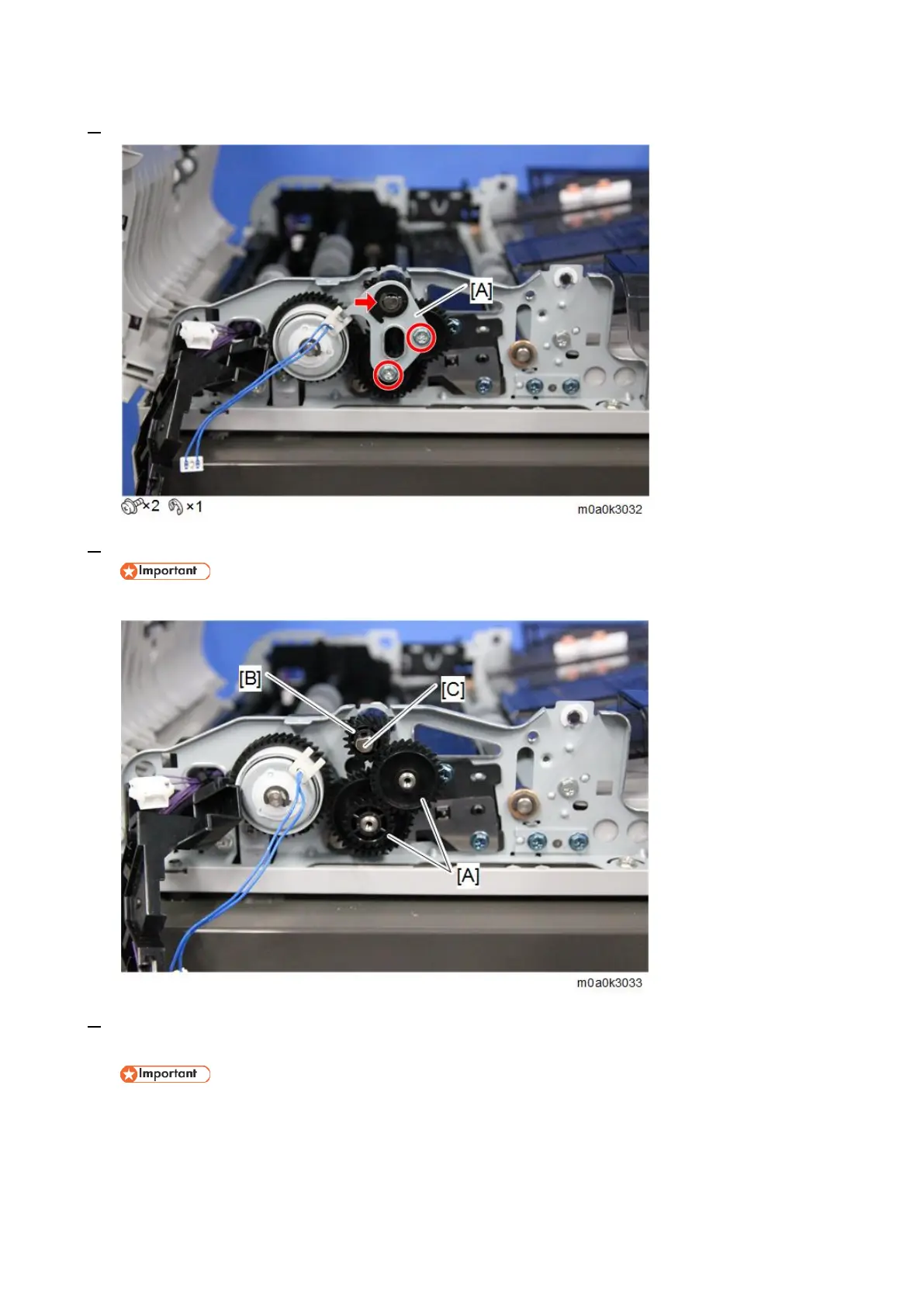

7. Remove the gear bracket [A].
8. Remove the two gears [A].
Do not remove the gear [B], to prevent the inner pin [C] from dropping into the machine.
9. Open the ADF unit [A] while holding the gear [B] by hand, and open the scanning guide plate (rear side)
[C] by pulling the release lever [D].
• Hold the gear [B]. It is not fixed, and may drop into the machine.
• Open the scanning guide plate (rear side) [C] before replacing the CIS unit. Otherwise, the
surface could be damaged.
