Scanner
233

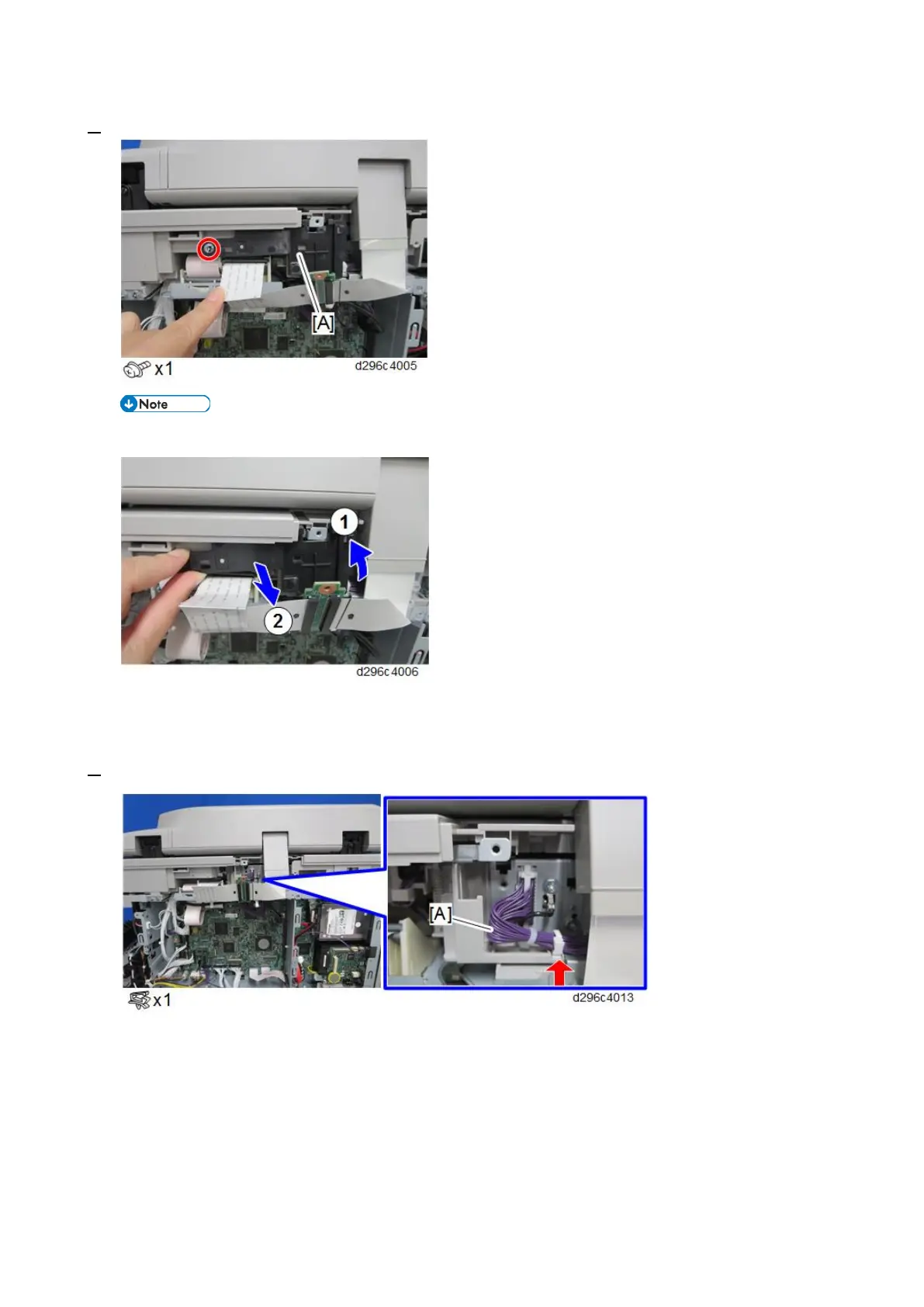

7. Remove the FFC fixing bracket [A] on the back side of the FFC.
Remove the FFC fixing bracket while turning it counterclockwise and releasing the tab.
8. Release the clamp for the harness [A] to the ADF.
