Ricoh MP C307

Image/Paper Transfer
259

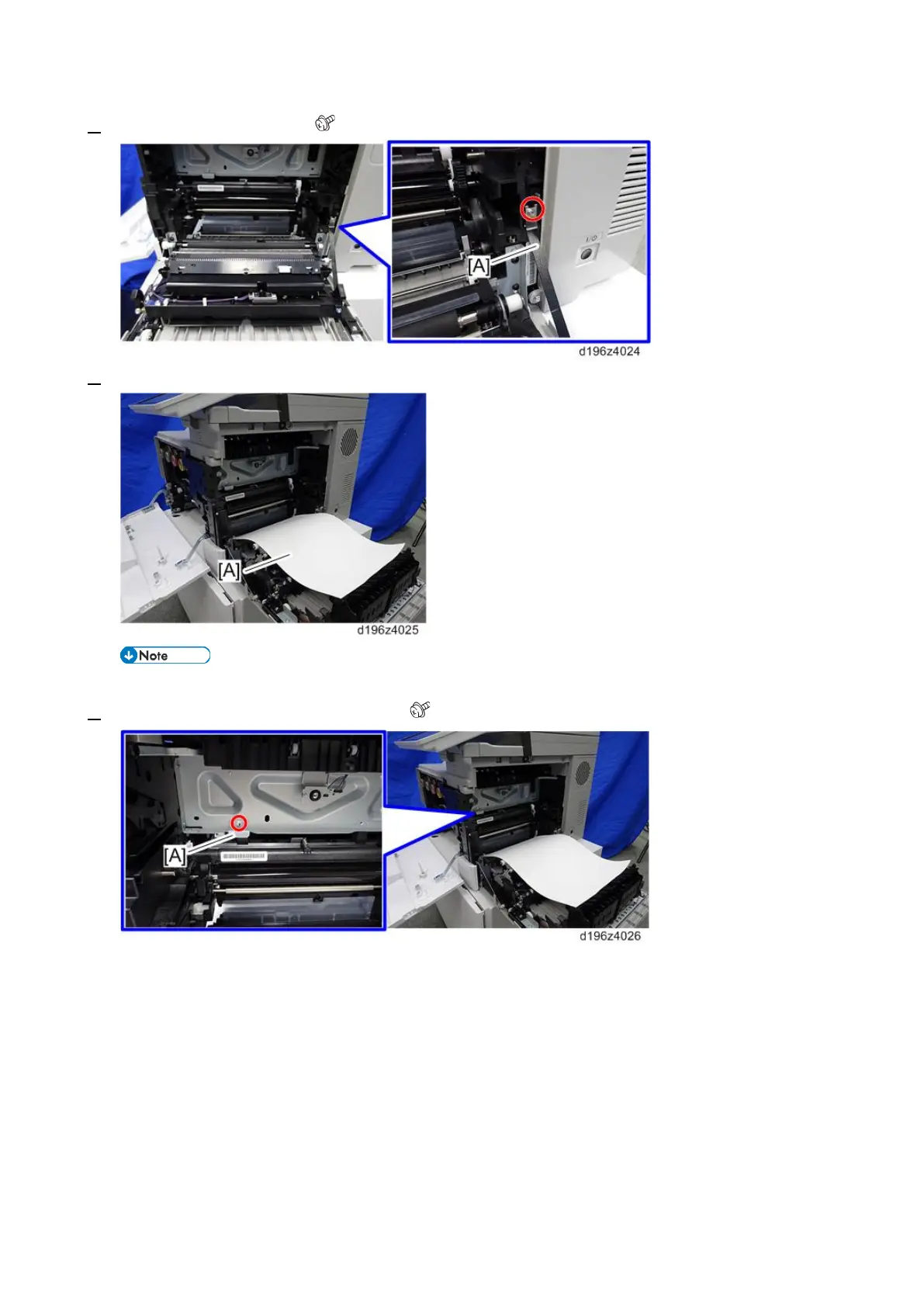

5. Release the tension belt [A]. ( × 1)
6. Put a sheet of paper [A] on the duplex unit with the short edge of the paper pointing towards the ITB unit.
• This is to protect the paper transfer unit from toner when removing the ITB unit.
7. Remove the ITB unit securing bracket [A]. ( × 1)
