Ricoh MP C307

Mainframe Installation
27

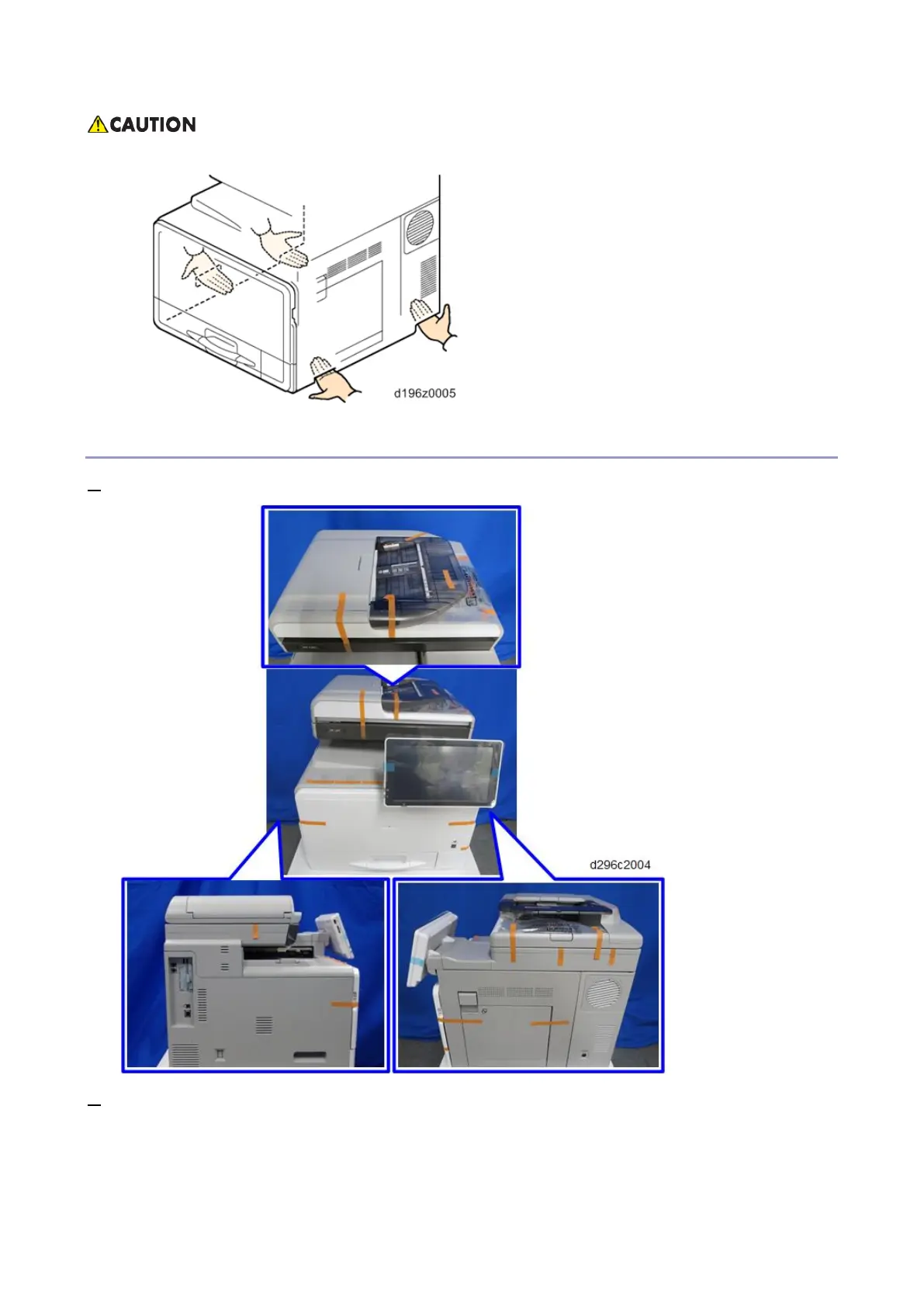

• Hold the specified positions as shown below when lifting the machine up or down.
Tapes, Retainers and Toner Bottles
1. Remove the tapes and the retainers from the machine.
2. Do the following steps:
• Open the ADF cover [A].
