Ricoh MP C307

Electrical Components
332

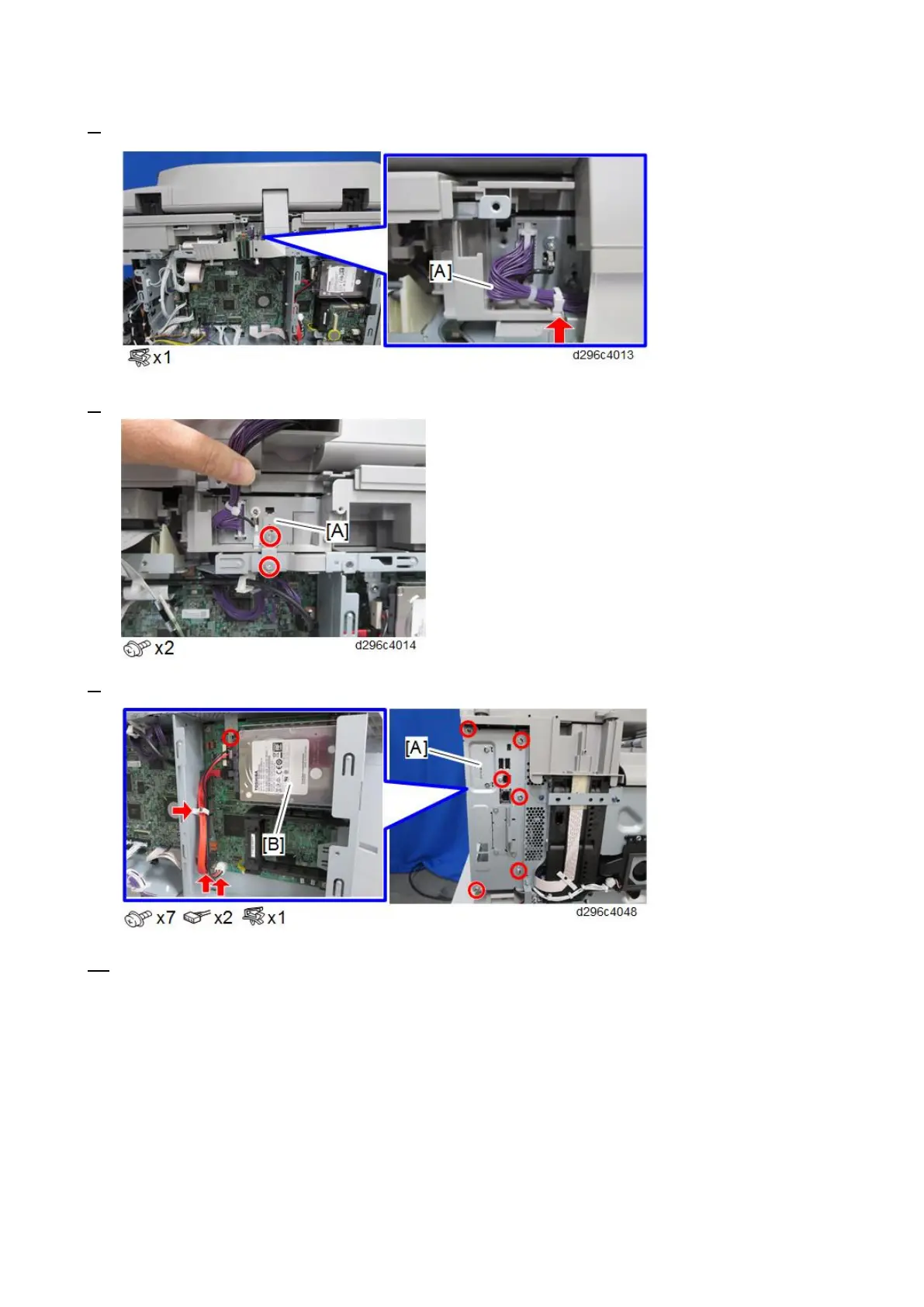

7. Release the clamp of the harness to the ADF [A].
8. Remove the grounding plate [A].
9. Remove the controller box cover [A] with the HDD [B].
10. Disconnect all the connectors on the BiCU [A].
Remove the clamps to make room for removal of the BiCU [A].
