PCDU
546
PCDU

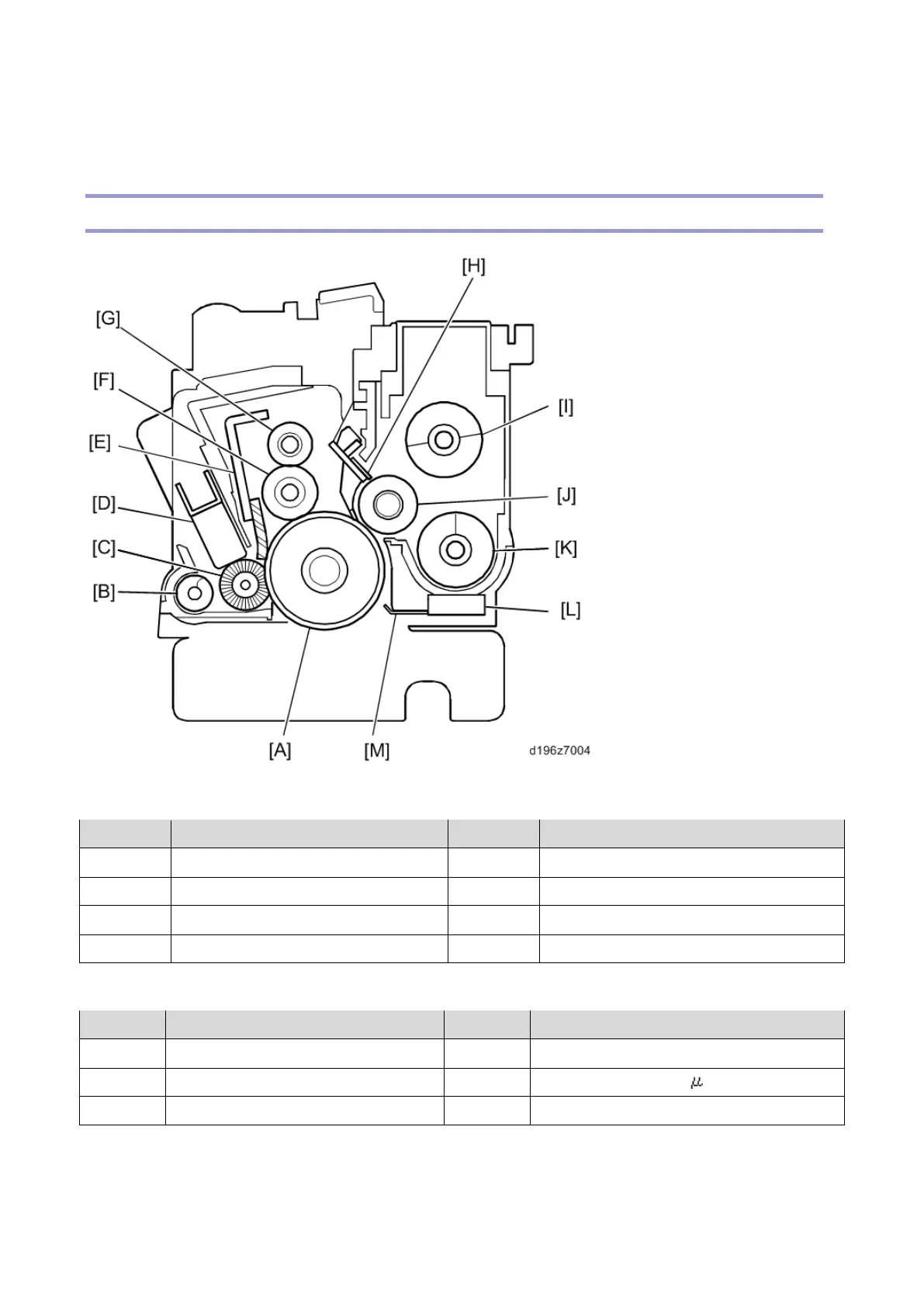

Overview
Drum Section
Callout Item Callout Item
[A] OPC Drum [E] Cleaning Blade
[B] Waste Toner Transport Coil [F] Charge Roller
[C] Lubricant Brush Roller [G] Charge Roller Cleaning Roller
[D] Lubricant
Development Section
Callout Item Callout Item
[H] Doctor Blade [K] Toner Transport Coil (Lower)
[I] Toner Transport Coil (Upper) [L] Toner Density Sensor ( sensor)
[J] Development Roller [M] Toner Catching Mylar
The OPC drum section and the development section are joined by plates at the front and rear of the unit.
