Ricoh MP C307

PCDU
549
Development Unit

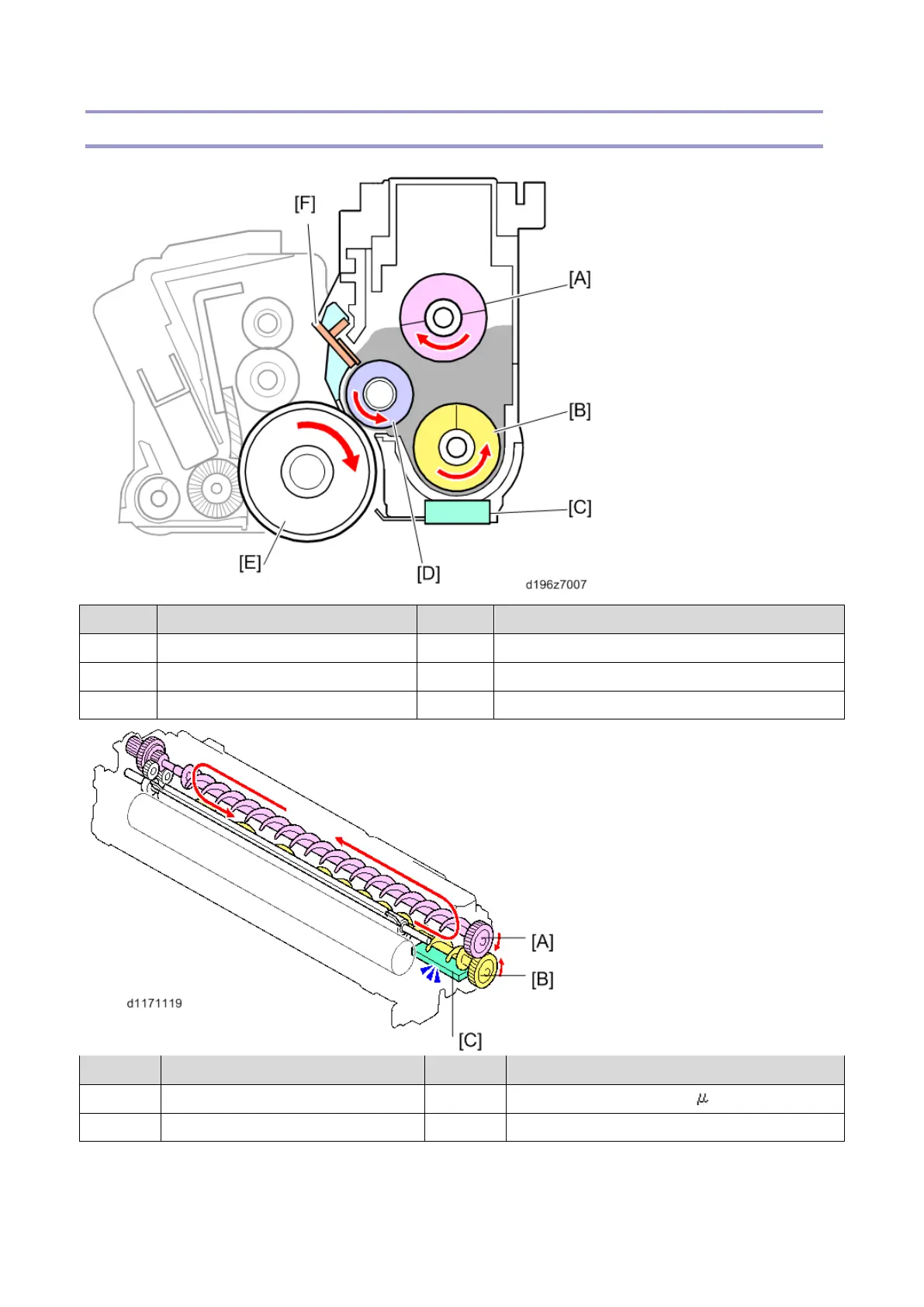

Callout Item Callout Item
[A] Toner Transport Coil (Upper) [D] Development Roller (Sleeve Architecture)
[B] Toner Transport Coil (Lower) [E] OPC Drum
[C] Toner Density Sensor (Sensor) [F] Doctor Blade
Callout Item Callout Item
[A] Toner Transport Coil (Upper) [C] Toner Density Sensor (mu ( ) Sensor)
[B] Toner Transport Coil (Lower)
• Developer Agitation Mechanism
The developer is agitated by the upper [A] and lower [B] transport coils.
