Toner Supply Section
552

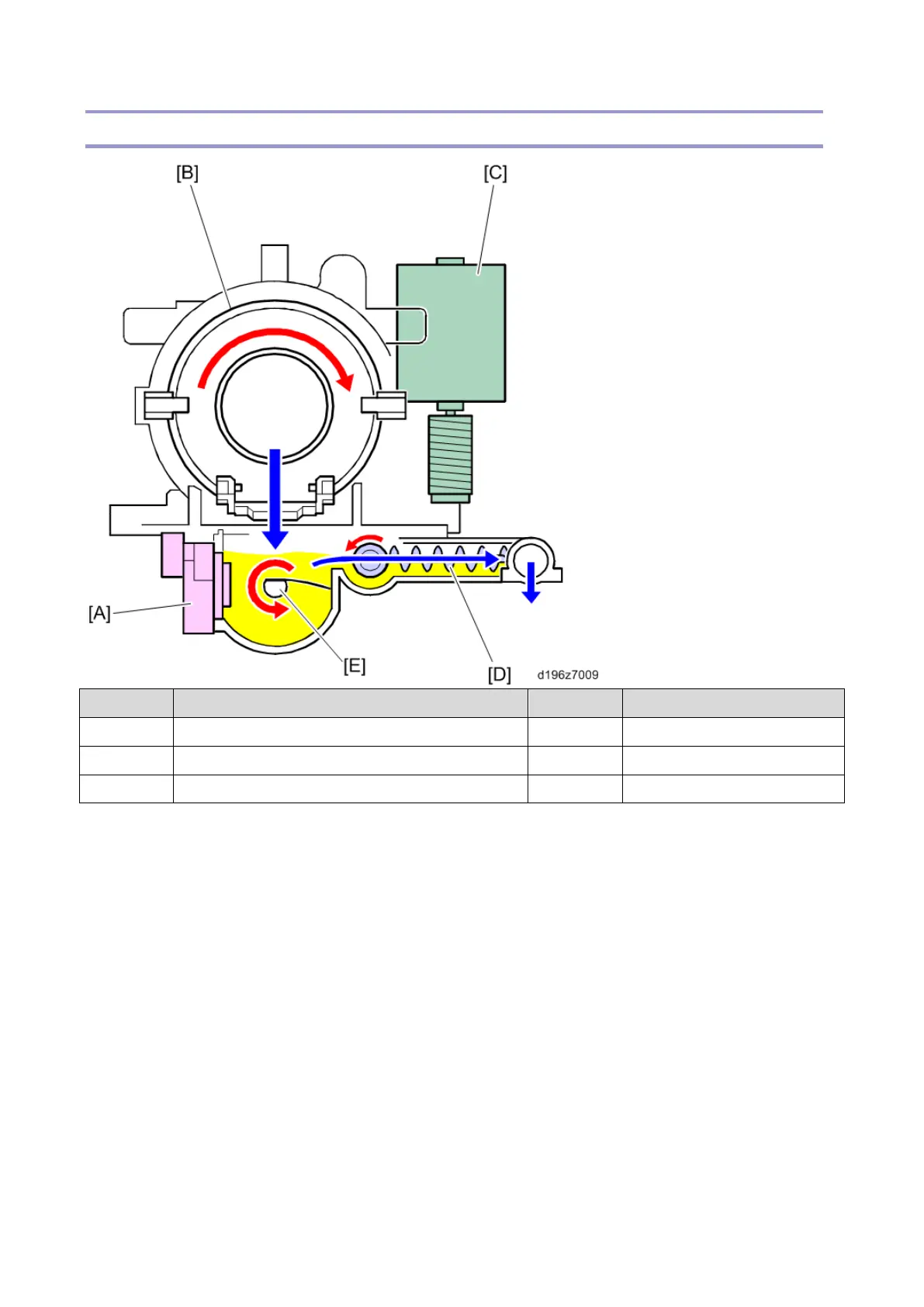

Toner Supply and Transport Mechanism
Callout Item Callout Item
[A] Toner End Sensor (Only for CMY) [D] Toner Transport Coil
[B] Toner Bottle [E] Agitator
[C] Toner Supply Motor
Rotating the toner bottle [B] transports the toner towards the rear of the machine. Each toner bottle has an ID
chip that stores information for each toner bottle. The toner from the toner bottles goes into the hopper and is
agitated by the agitator [E].
Then, rotating the toner transport coil [D] transports the toner to the development unit. Only color hoppers have
the toner end sensor [A]. The ID chip manages the remaining amount of black toner.
