Waste Toner Collection
557

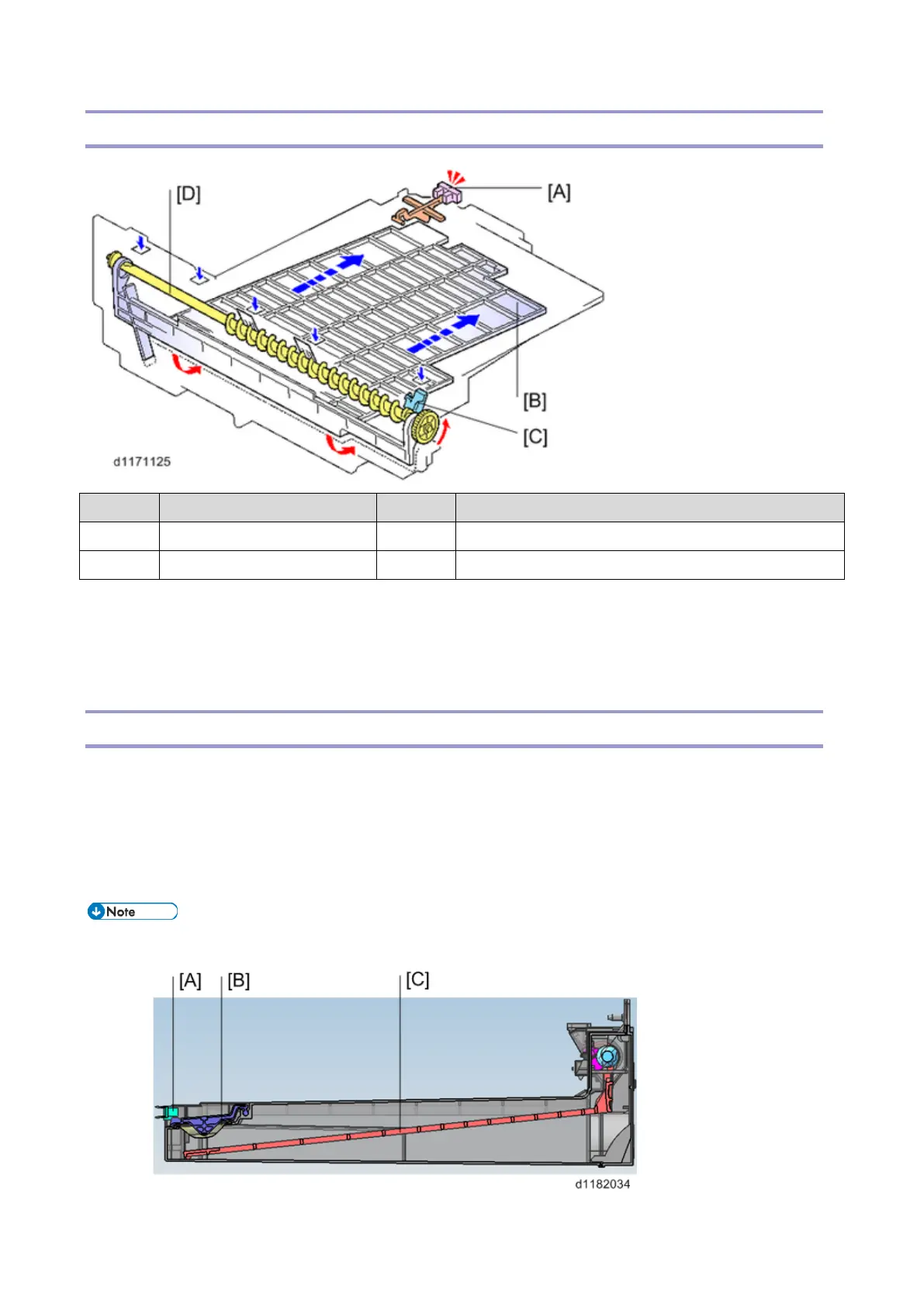

Waste Toner Collection Mechanism
Callout Item Callout Item
[A] Waste Toner Full Sensor [C] Waste Toner Agitator (for ITB Cleaning Unit)
[B] Waste Toner Agitator [D] Waste Toner Bottle Transport Coil
The waste toner agitator [B] carries waste toner piled up at the front of the waste toner bottle to the rear. The
agitator [C] moves together with the waste toner bottle transport coil [D].
When the waste toner full sensor [A] detects a “waste toner near full”, the machine displays an alert message on
the operation panel, which prompts users to replace the waste toner bottle.
Waste Toner Full Detection
When the waste toner moves the rubber actuator [B] to the highest position, the waste toner full sensor [A]
detects that the waste toner bottle is near-full. The machine does not stop at this time.
When the quantity of waste toner calculated by the machine reaches 25 g or 3,000 sheets in standard mode,
whichever comes first after near-full was detected, the machine detects that the waste toner bottle is full, and
stops itself automatically.
• When the waste toner bottle is empty:
To Next Page
