ITB/ Paper Transfer
559
ITB/ Paper Transfer

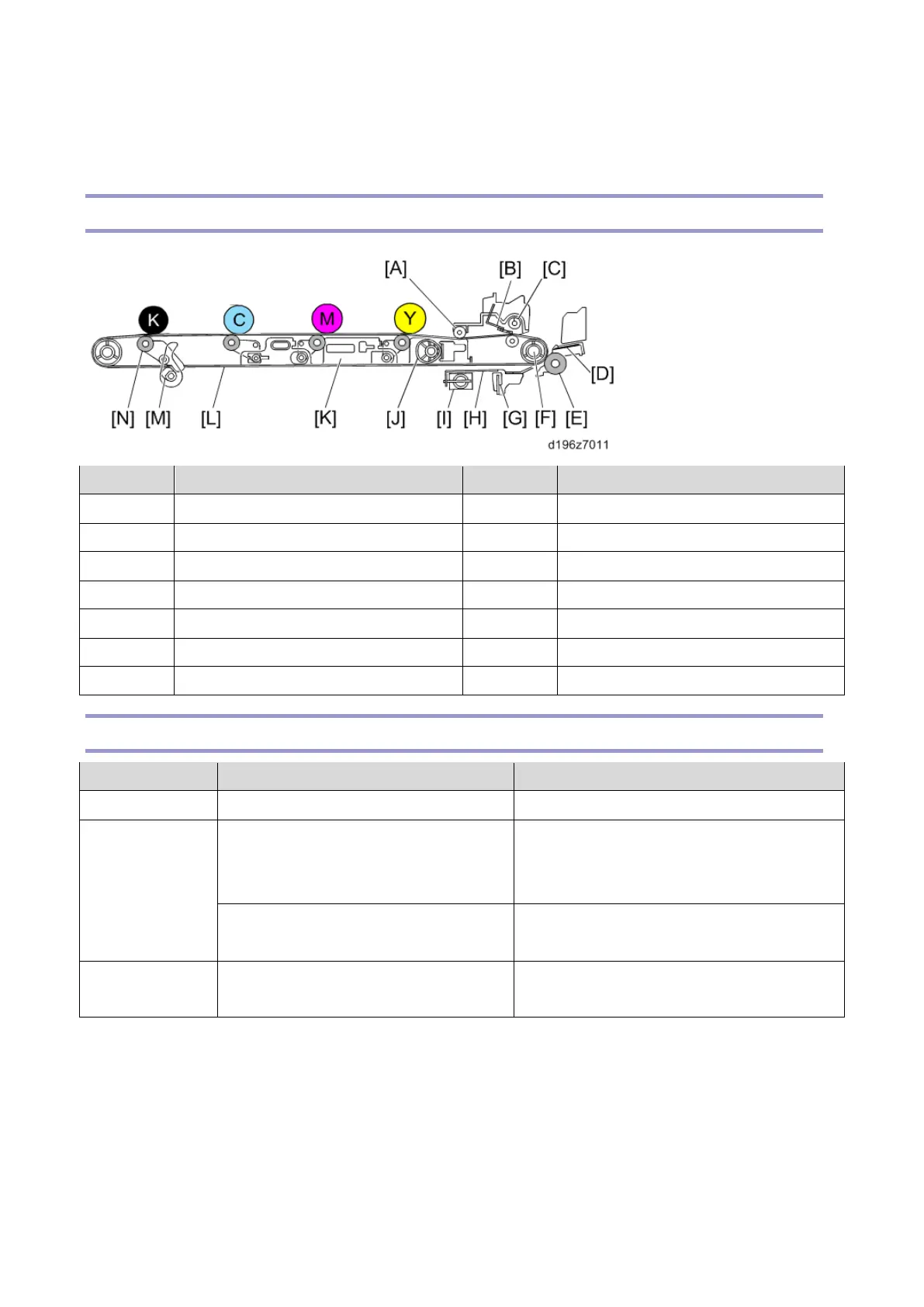

Overview
Callout Item Callout Item
[A] Belt Tension Roller [H] ID Sensor Shutter
[B] ITB Cleaning Blade [I] ID Sensor Shutter Solenoid
[C] Waste Toner Transport Coil [J] ITB Contact Cam (CMY)
[D] Discharge Plate [K] ITB Contact Slider
[E] Paper Transfer Roller [L] ITB (Image Transfer Belt)
[F] ITB Drive Roller [M] ITB Contact Cam (K)
[G] ID Sensor [N] Image Transfer Roller
Differences from the Predecessor Models
C305 (Predecessor model) C306/C406/C307/C407 (This model)
Image Transfer Direct Transfer Indirect transfer
Paper Transfer Repulsion transfer
(Paper transfer bias is applied to the ITB
drive roller.)
Attraction transfer
(Paper transfer bias is applied to the paper
transfer roller.)
Contact/release mechanism Constant contact
(No release mechanism)
Cleaning
Mechanism
Cleaning Blade + Lubricant brush roller Cleaning Blade
