ITB/ Paper Transfer
561
• Indirect Image Transfer + Attraction Transfer Method (C306/C406/C307/C407):

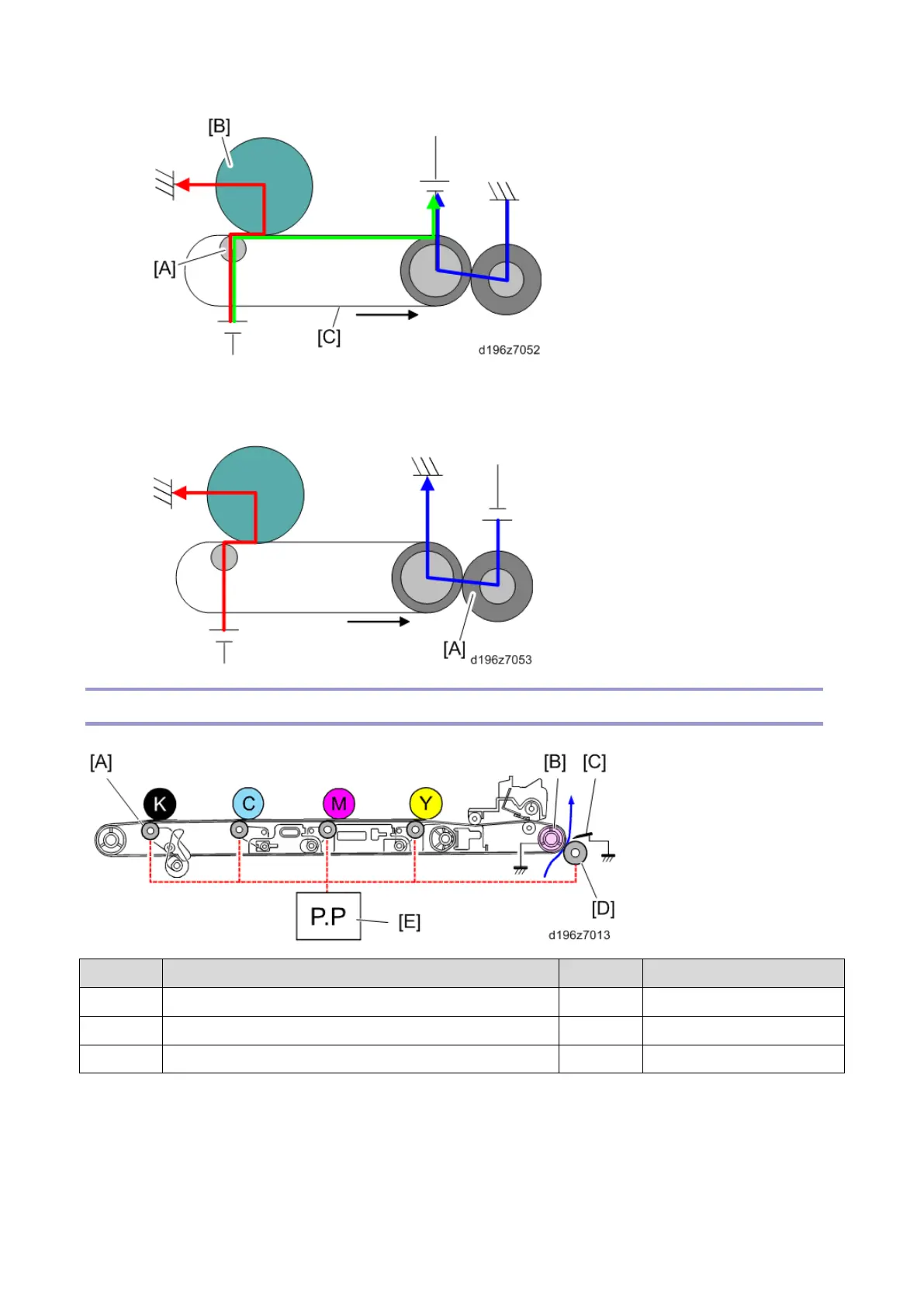

To eliminate the interference, applying the opposite bias to the paper transfer roller [A] is required.
That is why the attraction transfer method is used in this model.
Transfer Bias
Callout Item Callout Item
[A] Image Transfer Roller (First Transfer Roller) [D] Paper Transfer Roller
[B] ITB Drive Roller [E] Power Pack
[C] Discharge Plate
The power pack [E] applies a transfer bias to the image transfer roller [A]. The ITB drive roller [B] and
discharge plate [C] are grounded through a diode.
There is no contact/release mechanism for the paper transfer system, which the previous model uses, to reduce
noise.
