ITB Cleaning
Callout Item Callout Item

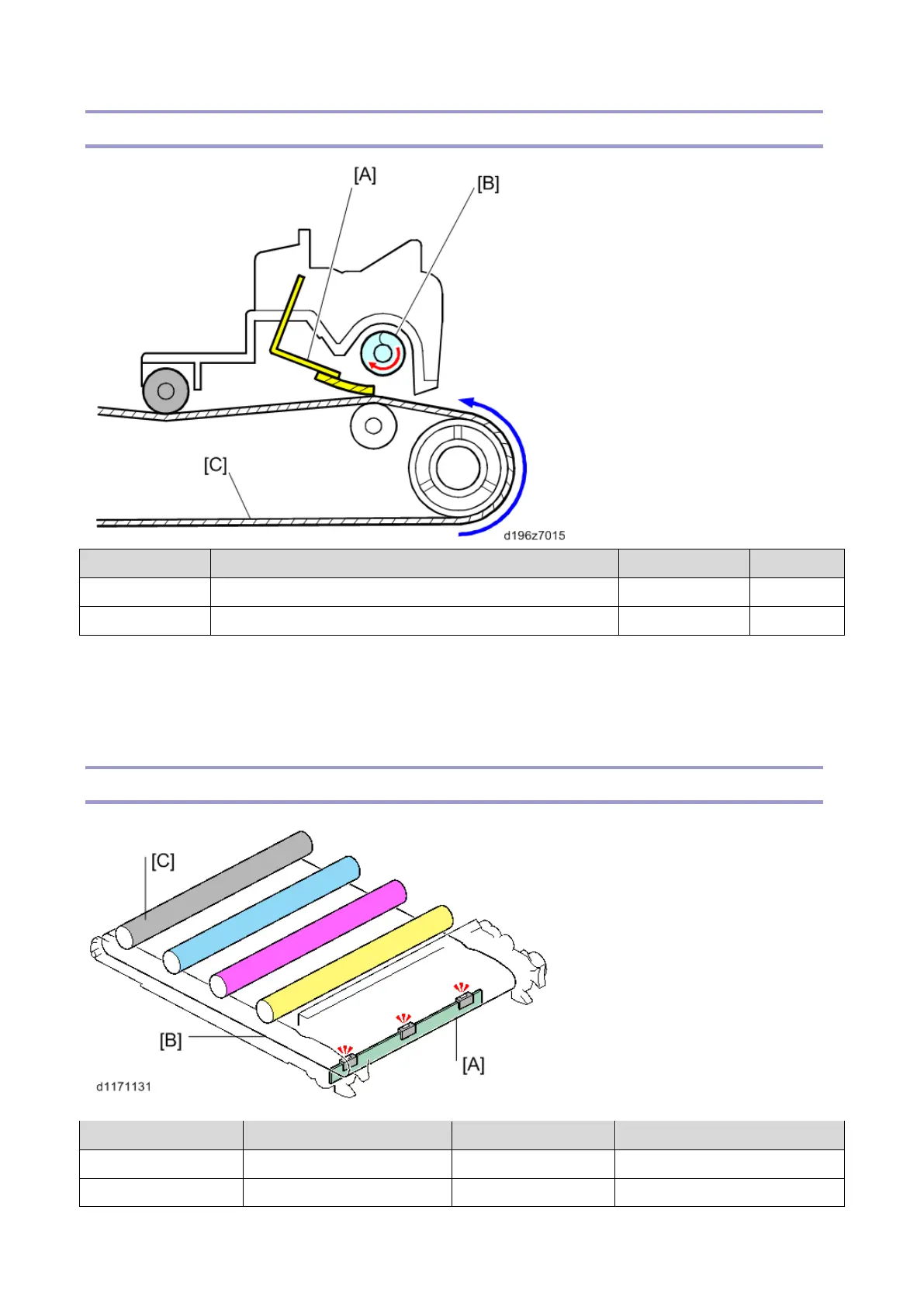

[A] ITB Cleaning Blade [C] ITB
[B] Waste Toner Collection Coil
The cleaning blade [A] cleans the ITB [C]. The waste toner collection coil [B] transports the waste toner
removed by the ITB cleaning blade towards the front of the machine.
This model only uses a cleaning blade for cleaning, whereas the previous model uses a blade and a lubricant
brush roller.
Image Position Correction
Callout Item Callout Item
[A] ID Sensor [C] OPC Drum
[B] ITB
