Machine Ventilation
591
Machine Ventilation
Overview

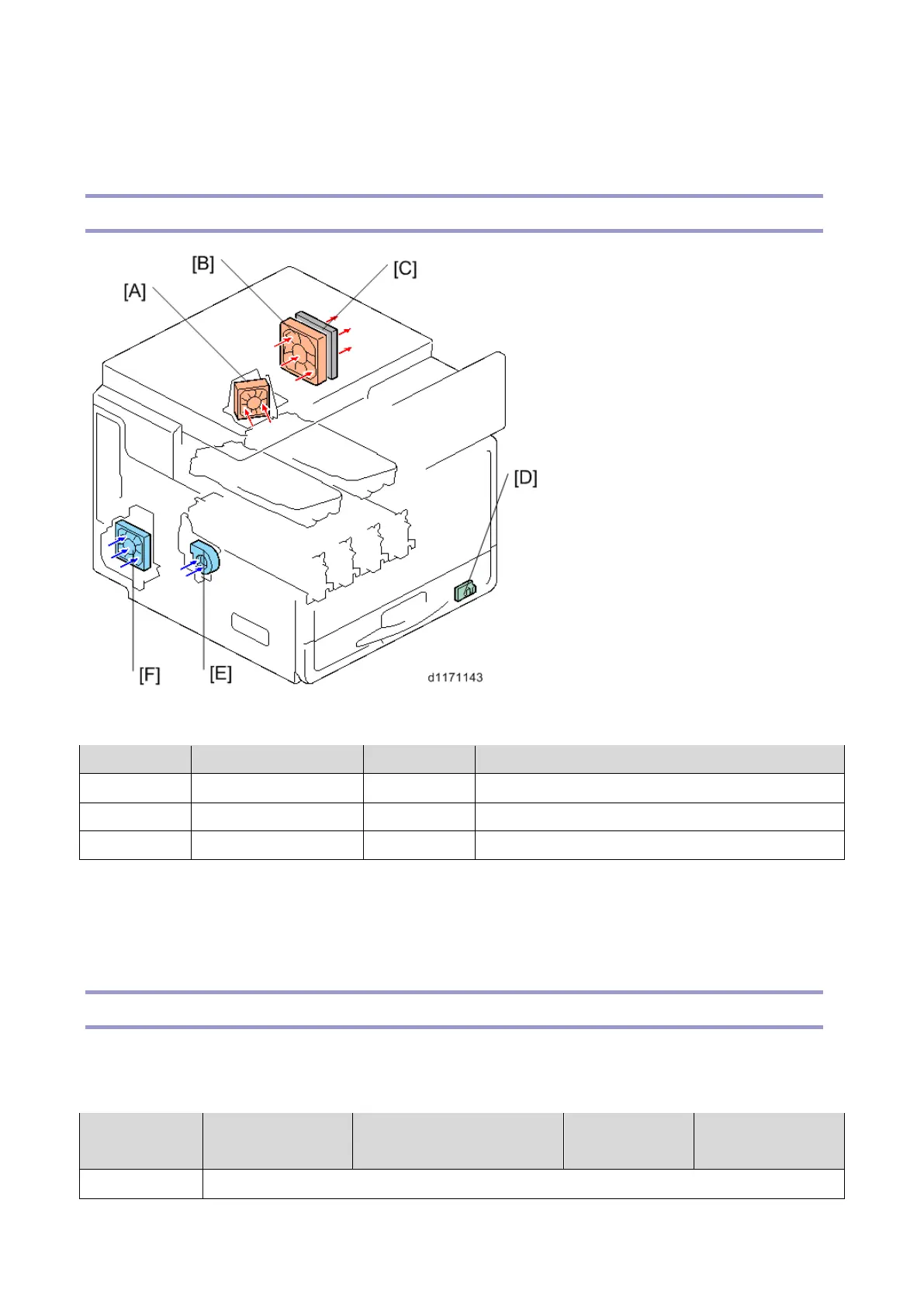

Callout Item Callout Item
[A] LD Unit Fan [D] Temperature/Humidity Sensor
[B] Fusing Fan [E] PCDU Cooling Duct Fan
[C] Ozone Filter [F] PSU Fan
The machine has four fans [A] [B] [E] [F] to ventilate the interior of the machine. There is a
temperature/humidity sensor [D] at the front (lower right) of the machine. The machine takes in air from the left
of the machine and exhausts it from the right of the machine after it cools the machine interior.
The ozone filter [C] is installed at the right of the fusing fan, which helps make it easier to replace the filter.
Machine Ventilation
The following tables summarize the fan control.
Fan Control Overview
Status PCDU Cooling
Duct Fan
Fusing Fan PSU Fan LD Unit Fan
Engine Off Off
