Paper Feed Unit PB1080/PB1080TE (Optional)
600
Paper Feed Unit PB1080/PB1080TE (Optional)

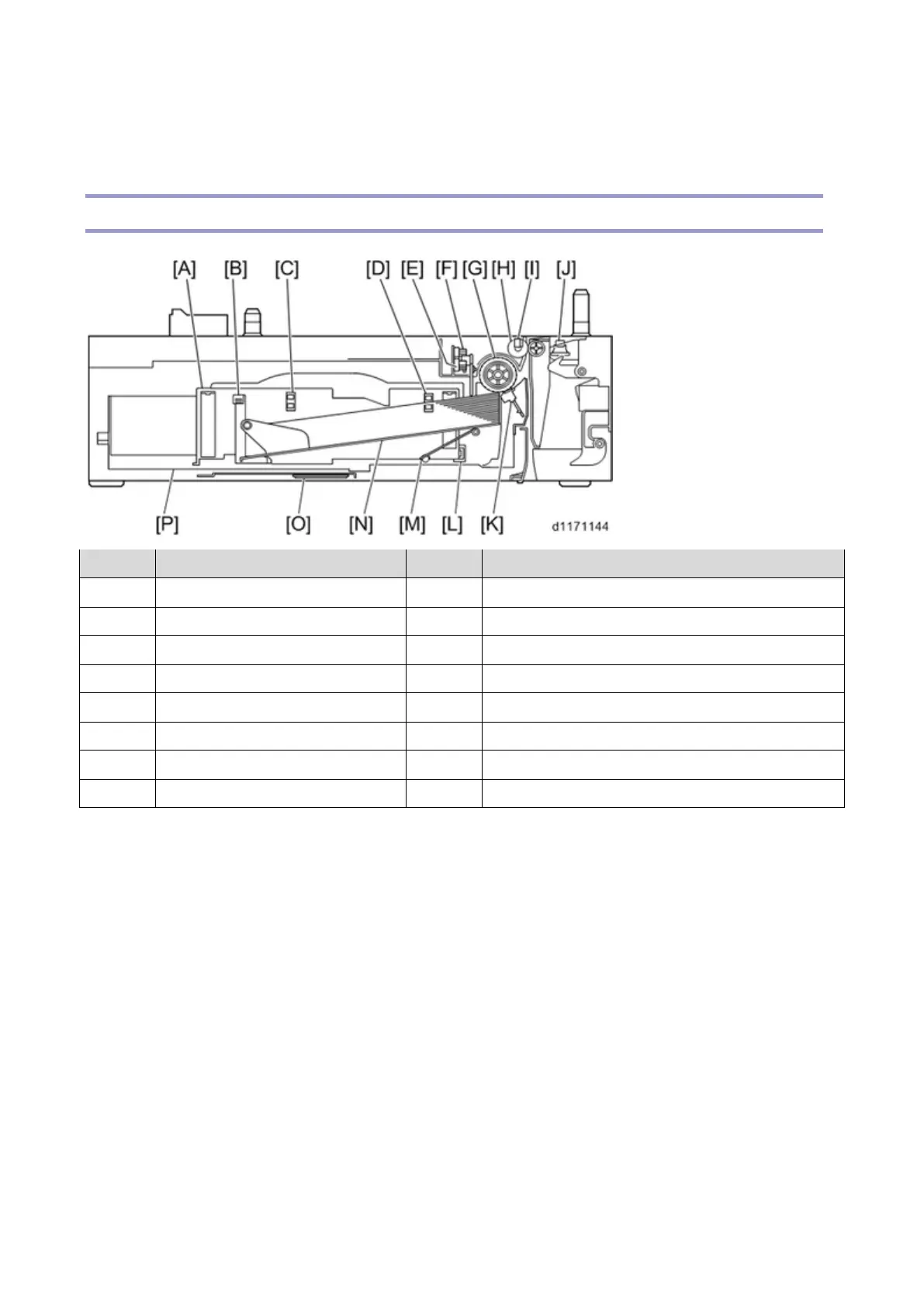

Overview
Callout Item Callout Item
[A] Side Fence [I] Paper Transport Sensor
[B] End Fence [J] Vertical Transport Cover Open/Close Switch
[C] Tray Bottom Plate Lift Sensor [K] Friction Pad
[D] Tray Bottom Plate HP Sensor [L] Tray Set Switch
[E] Paper End Sensor [M] Bottom Plate Lift lever
[F] Remaining Paper Sensor [N] Tray Bottom Plate
[G] Paper Feed Roller [O] Anti-condensation Heater (Option)
[H] Vertical Transport Roller [P] Paper Tray
