Paper Feed Unit PB1080/PB1080TE (Optional)
602
Callout Item Callout Item
[D] Vertical Transport Cover Open/Close Switch [H] Vertical Transport Sensor

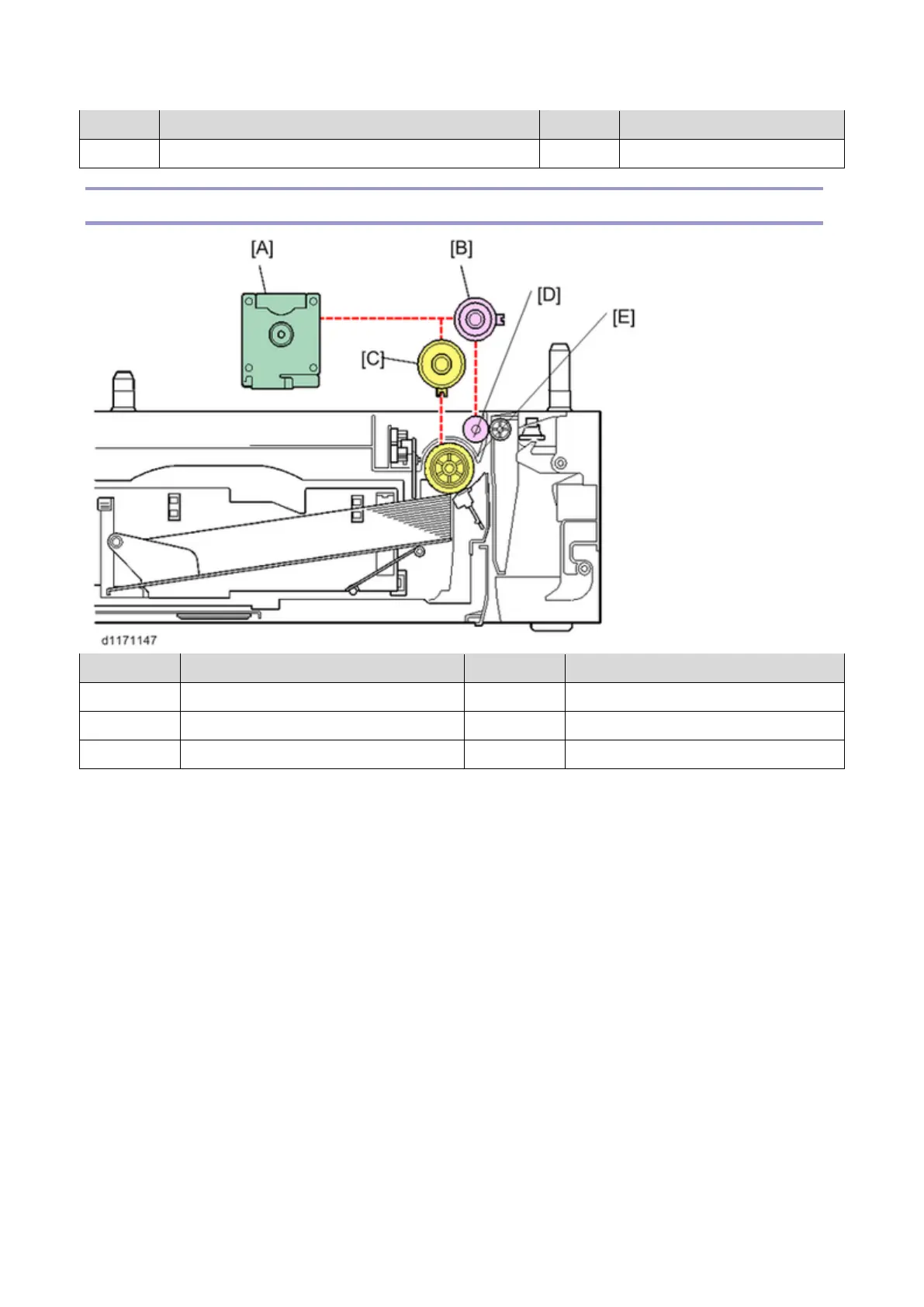

Paper Transport Drive
Callout Item Callout Item
[A] Paper Feed Motor [D] Vertical Transport Roller
[B] Vertical Transport Clutch [E] Paper Feed Roller
[C] Paper Feed Clutch
The paper feed motor drives the paper feed clutch [C] and the vertical transport clutch [B] through gears. The
operation timing of each clutch is as follows.
1. The paper feed clutch [C] is turned on until the vertical transport roller begins to operate.
2. The vertical transport clutch [B] is turned on until the paper reaches the mainframe.
