Ricoh MP C307 - Page 76

1-Bin Tray BN1030 (D574-58)
70
7.

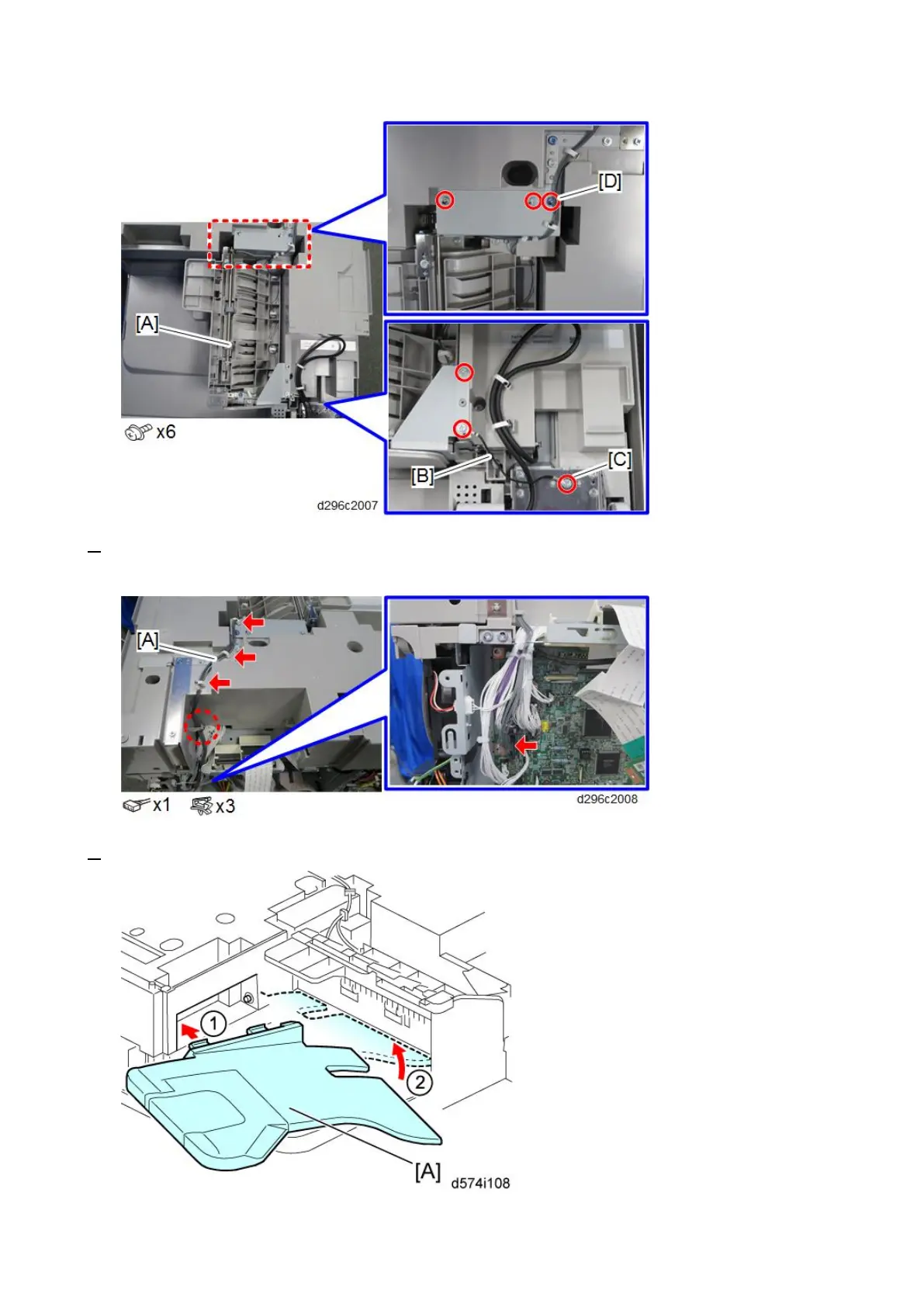

Connect the connector of the 1-bin tray unit to CN527 on the BiCU, and then fasten the harness [A].
Route the harness with the hook (marked by the dashed circle).
8. Install the 1-bin tray [A].
