Optional Counter Interface Unit Type M12 (B870-21)
78

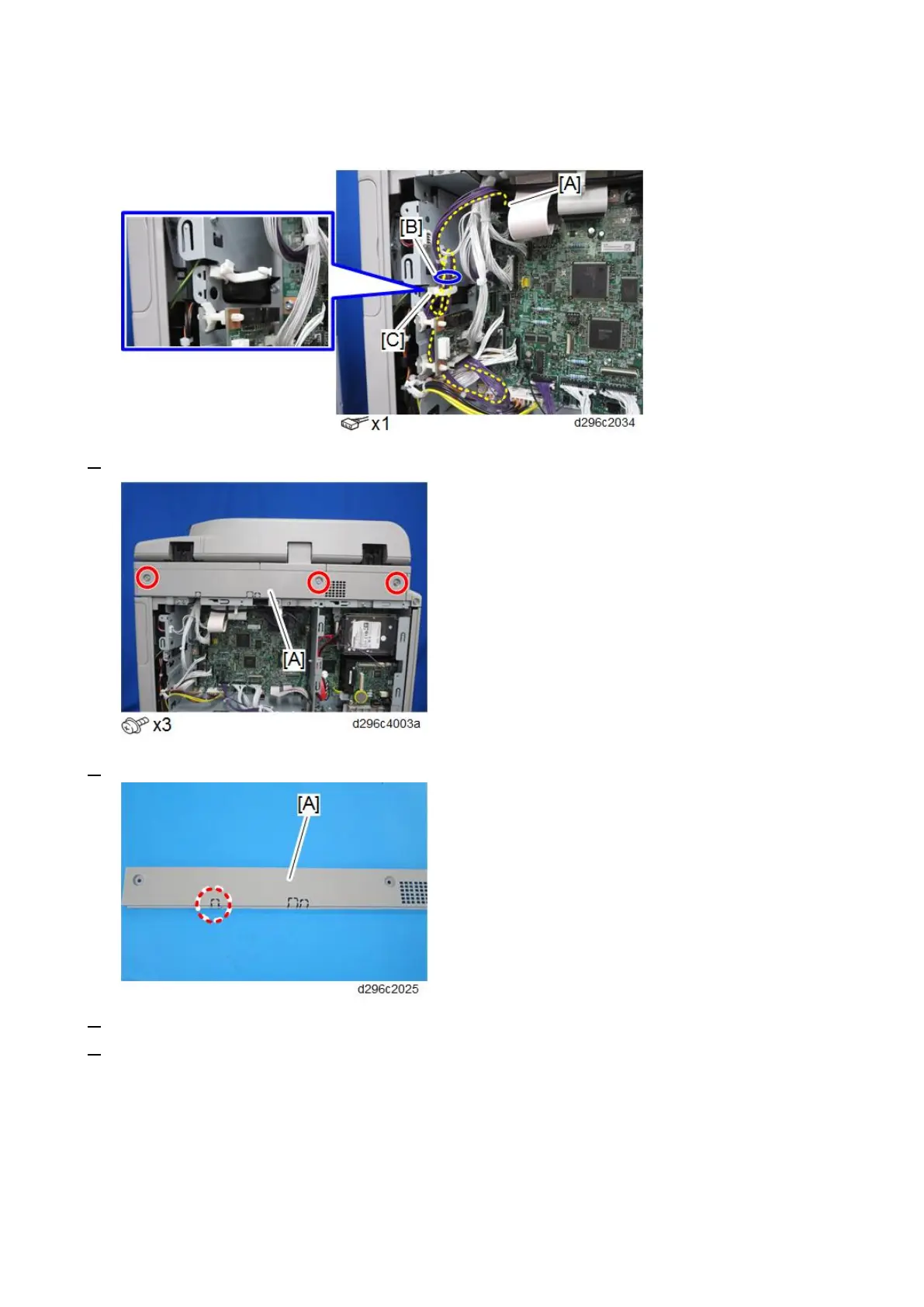

• Insert the clamp included in this kit at [C], and clamp the harness with the clamp to prevent
interference with other harnesses.
6. Remove the scanner rear cover [A].
7. Cut out the hole for the counter device cable to pass through the scanner rear cover [A].
8. Reattach the scanner rear cover.
9. Connect the harness from the counter device to CN4 [A] on the key counter interface board and route the
harness.
