Ricoh MP C307

Anti-condensation Heater (Mainframe)
84

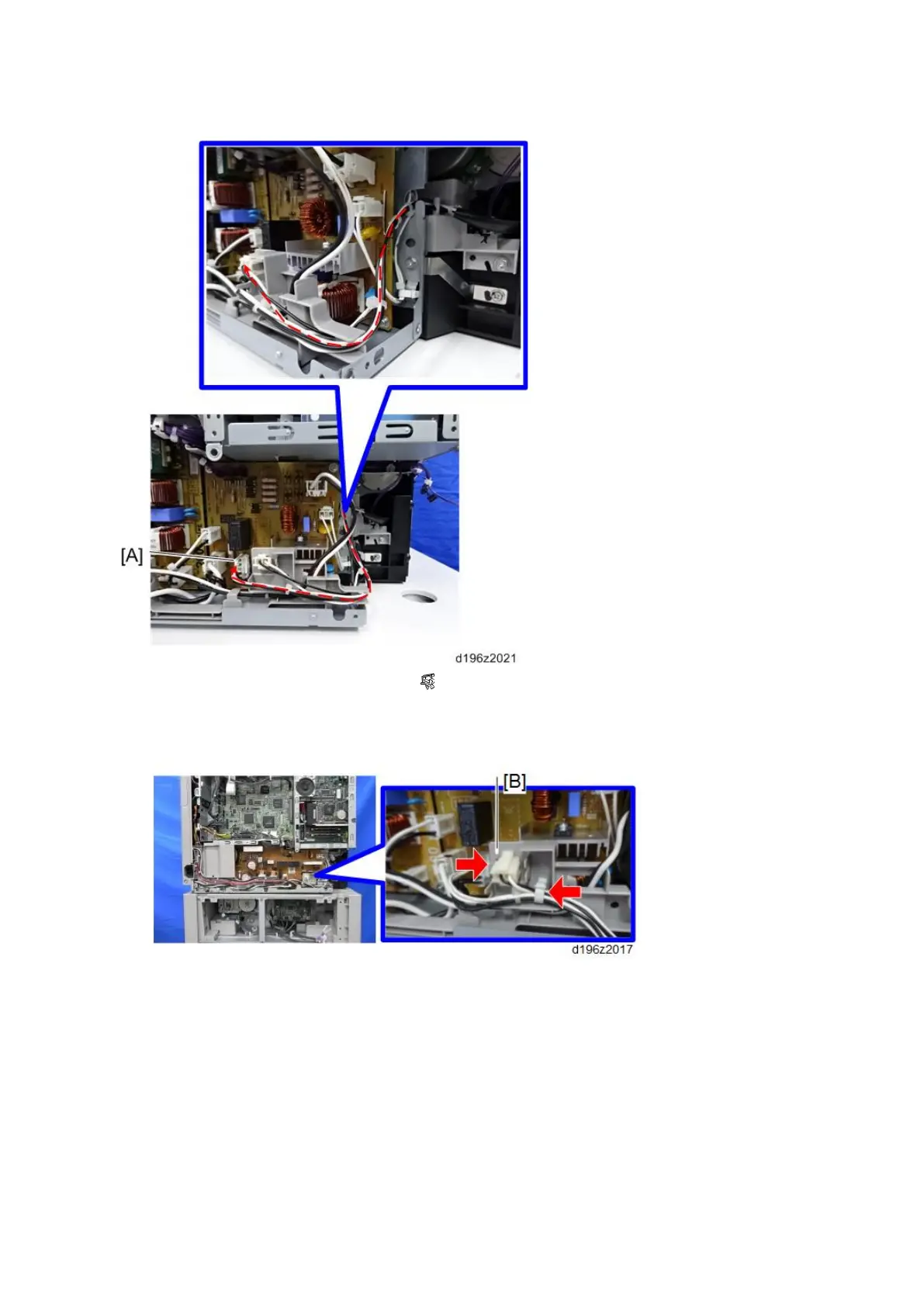

• Connect the connector [A] to CN600.
• Attach the clamp and route the harness. ( × 1)
• Only when the heater for optional paper feed tray will not be installed, store the connector [B] in the
holder.
