Anti-condensation Heater (for Mainframe Paper Tray)
90

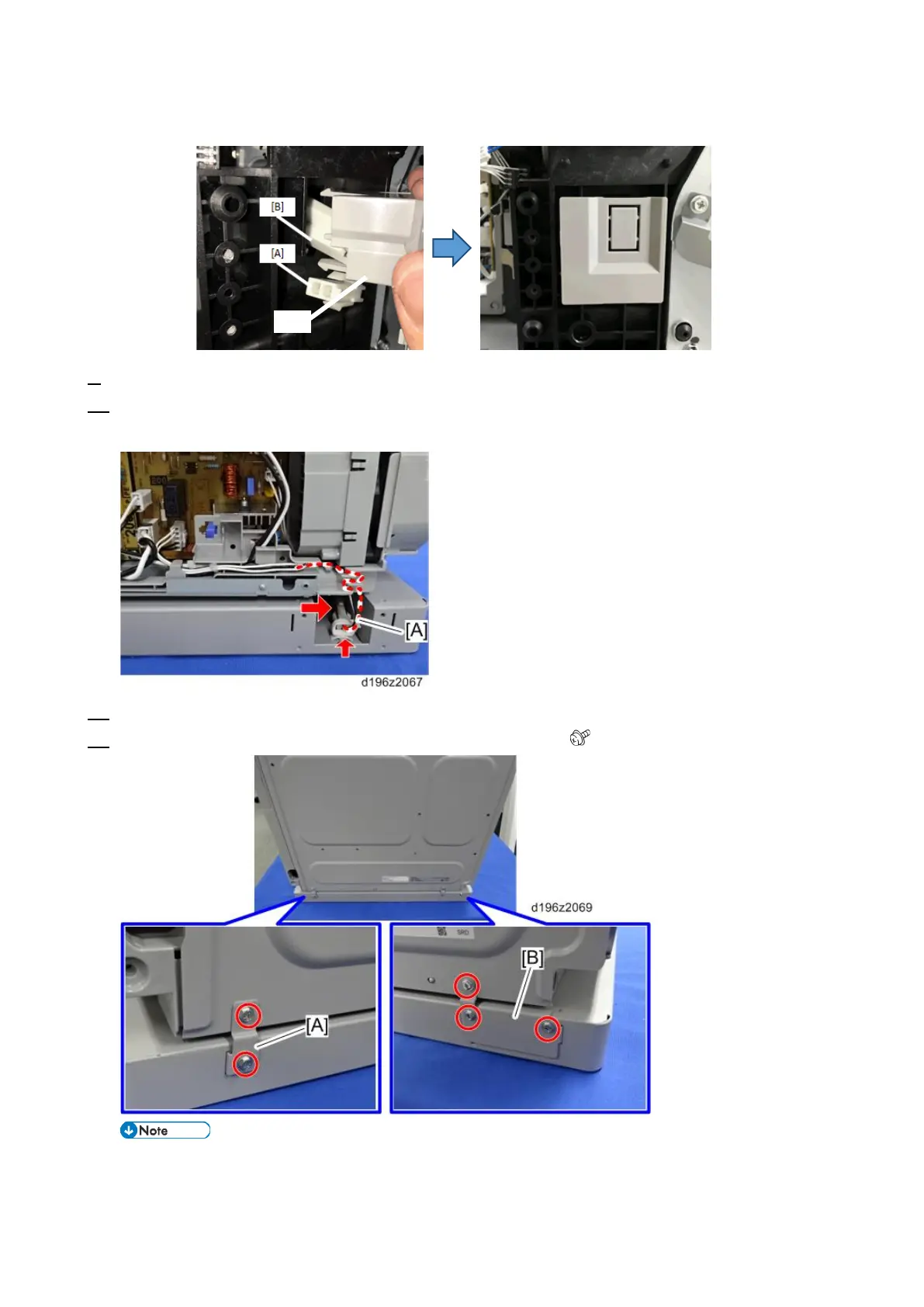

• Store the connector [B] into the cover [E], and then attach the cover [E].
9. Install the PSU fan.
10. Connect the junction harness [A] to the heater harness and route the junction harness along the red dotted
line in the photo.
11. Reattach the rear cover.
12. Attach the two securing brackets [A] [B] at the rear of the machine. ( × 5)
• Use the screws which are holding the rear cover.
To Next Page
