7. OPERATING ADDITIONAL FUNCTIONS
IMR02C15-E4 7-3
 SV selection by front key operation
To switch to SV1 to SV4 by front key operation, use the SV selection parameter of Parameter setting
mode.
If Timer function 3 or Timer function 4 is in use, it will not be possible to switch SV (among
SV1 and SV4) by front key operation.

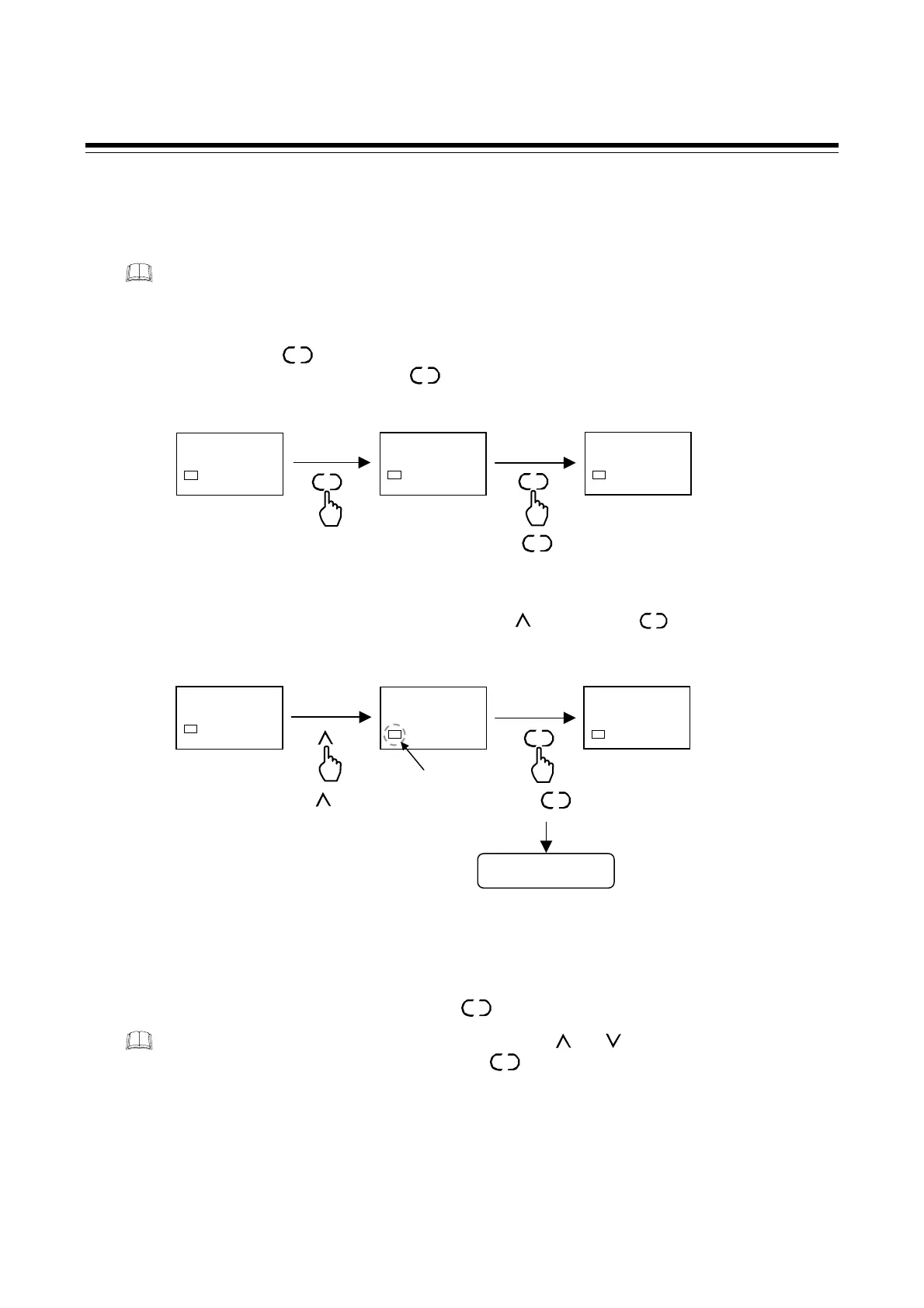

[Example: Switching from SV1 to SV2]
1. Press and hold the key for 2 seconds or more at the PV/SV monitor screen to go to the
Parameter setting mode, and press the key to display to the SV selection screen.
2. Change the value of the flashing digit to “2” with the key. Press the key to store the new
value.
• Return to the PV/SV monitor
To return the PV/SV monitor, press and hold the key for 2 seconds or more.
After a new value is displayed on the display by using and keys, if no key operation is
performed within 1 minute without pressing key, this instrument returns to the PV/SV
monitor screen and the set value will not be changed.
SET
SET
SET
PV/SV monitor
28
$
150
SV1
SV1
$
0150
SV1
2 seconds or more
Parameter setting mode
Set value 1 (SV1)
S-SV
0001
SV1
Parameter setting mode
SV selection
Press the key to
SV selection screen (
S-SV)
SET
SET
SET
SET
S-SV
0001
SV1
SVT1
00:01
SV2
SV selection
S-SV
0002
SV2
SV2 lamp lights
Displays the next parameter
Timer 1
Press the key to change
the number to 2.
Press the key to
store the new value.
SET
Control start for SV2
SET
SV selection setting range:
1 to 4
[Factory set value: 1]
SET
