 Timer setting
The parameters below must be set for Timer function 3 and Timer function 4 in Parameter setting
mode before operation.
• Set value 1 (SV1) to Set value 4 (SV4)
• Timer time 1 (Timer 1) to Timer time 4 (Timer 4)
• Timer function
• Repeat execution times (only set if the Repeat function will be used)
• Setting change rate limiter (up/down) (not necessary if the set values will be changed by steps)
Example:
SV1 SV2 SV3 SV4
Set value 100 °C 200 °C 150 °C 50 °C
Timer time 40 min. 90 min. 60 min. 30 min.
Timer function 4 (Timer function 4)
Repeat execution times 2
Setting change rate limiter (up) 10 °C/min.
Setting change rate limiter (down) 5 °C/min.
In the PV/SV monitor state, press and hold the key for 2 seconds or more to switch to Parameter
setting mode and set each parameter in the setting examples.
SET
The time units of the Timer time and Setting change rate limiters can be changed in Timer time unit (TMU) and
Setting change rate limiter unit time (
SVRT) in Function block 70 (F70) of Engineering mode.
Timer time setting range:
00 minute 01 seconds to 99 minutes 59 seconds or
00 hour 01 minutes to 99 hours 59 minutes
Repeat execution times setting range:
0 to 9999 (9999: Infinite times)
Setting change rate limiter (up/down) setting range:
1 (0.1) to Input span (Unit: °C [°F])/unit time

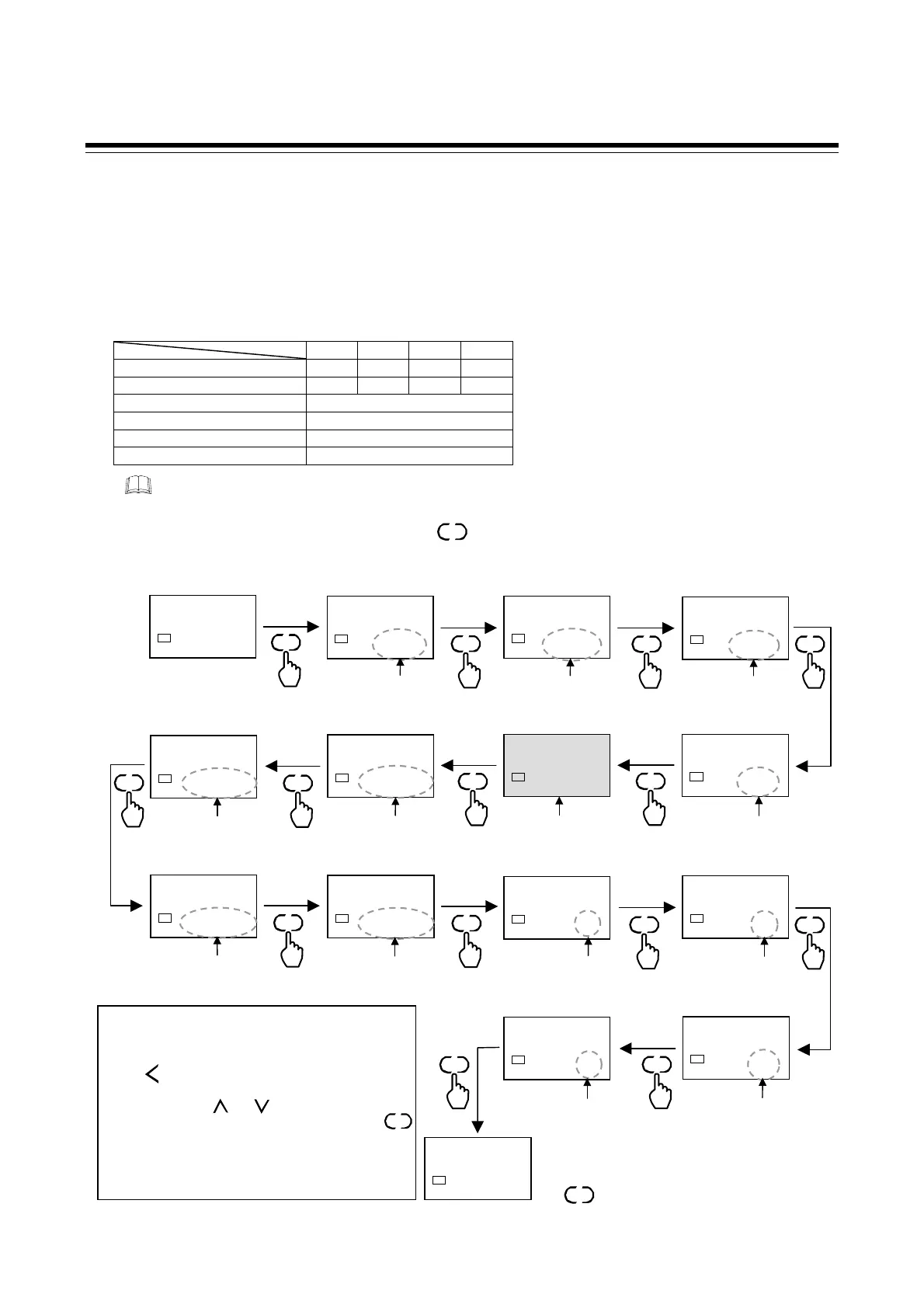

PV/SV monitor
28
$
0
SV1
SV1
$
0100
SV1
2 seconds
or more
Parameter setting mode
Set value 1 (SV1)
SV2
$
0200
SV1
Set value 2 (SV2)
SET
SET
Timer 1
SET
SVT1
00:40
SV1
Set the control set
value of SV1 to 100 °C.
SVT2
00:90
SV1
Timer 2
TMFS
0004
SV1
Set the time of Timer 2
to 1 hour and 30 minutes
SET
Set the Timer function
to “4.”
Timer function
RPTS
0002
SV1
SET
Repeat execution times
Set the control set
value of SV2 to 200 °C.
SV3
$
0150
SV1
Set value 3 (SV3)
Set the control set
value of SV3 to 150 °C.
SV4
$
0050
SV1
Set value 4 (SV4)
Set the control set
value of SV4 to 50 °C.
SET
Set the time of Timer 1
to 40 minutes
SVT3
00:60
SV1
Timer 3
Set the time of Timer 3
to 1 hour
SET
SVT4
00:30
SV1
Timer 4
Set the time of Timer 4
to 30 minutes
SET
SET
SVRU$
0010
SV1
Setting change rate limiter (up)
SET
Setting change rate limiter (down)
SET
SVRD
$
0005
SV1
Set the Setting change rate
limiter (up) to 10 °C/min.
Set the Repeat execution
times to “2.”
Set the Setting change rate
limiter (down) to 5 °C/min.
EV1
$
0050
SV1
Displays the next parameter
Event set value 1 (EV1)
SET
S-SV
0001
SV1
SV selection (unused)
SET
SET
To return the PV/SV monitor, press and hol
d
the key for 2 seconds or more.
SET
Set value change and registration
• The blinking digit indicates which digit can be
set. The blinking digit can be moved by pressing
the key.
•
However, the changed data is not stored by the
operation of the and keys alone. In order
for the new parameter value to be stored, the
key must be pressed within 1 minute after the
new value is displayed. The new value will then
be saved and the display will move to the next
parameter.
R/S
SET
