APPENDIX
IMR02C15-E4 A-3

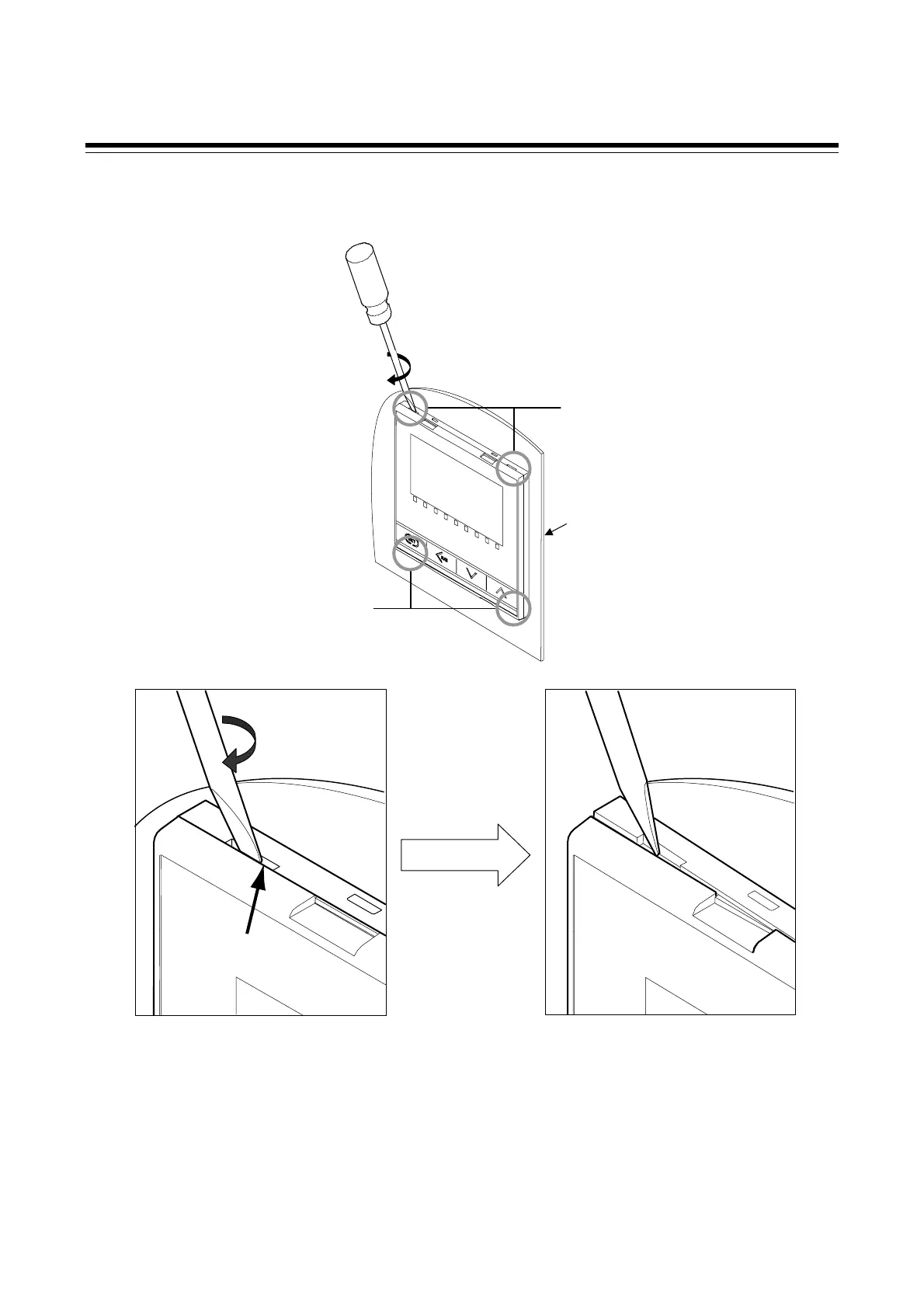

2. Insert the screwdriver in the case lock section as shown in the following figure, and then lightly
turn the screwdriver to release the case lock section. The case lock section is released.
3. The other case lock section should be released the same way described in steps 1 and 2.
4. Remove the internal assembly from the case.
Case lock section
release status
Case lock section
Case lock section (Upper: 2 places) *
Case lock section (Lower: 2 places) **
* The number of case lock sections of
RB100/400/700 (at top and bottom sides):
[RB500 (at right and left side)]
Each one section
Panel
