112 Rockwell Automation Publication 2198-UM001M-EN-P - November 2022
Chapter 6 Configure and Start the Kinetix 5500 Drive System
Configure Drive with Integrated Safety Connections
Follow these steps to configure Kinetix 5500 drives with integrated safety.

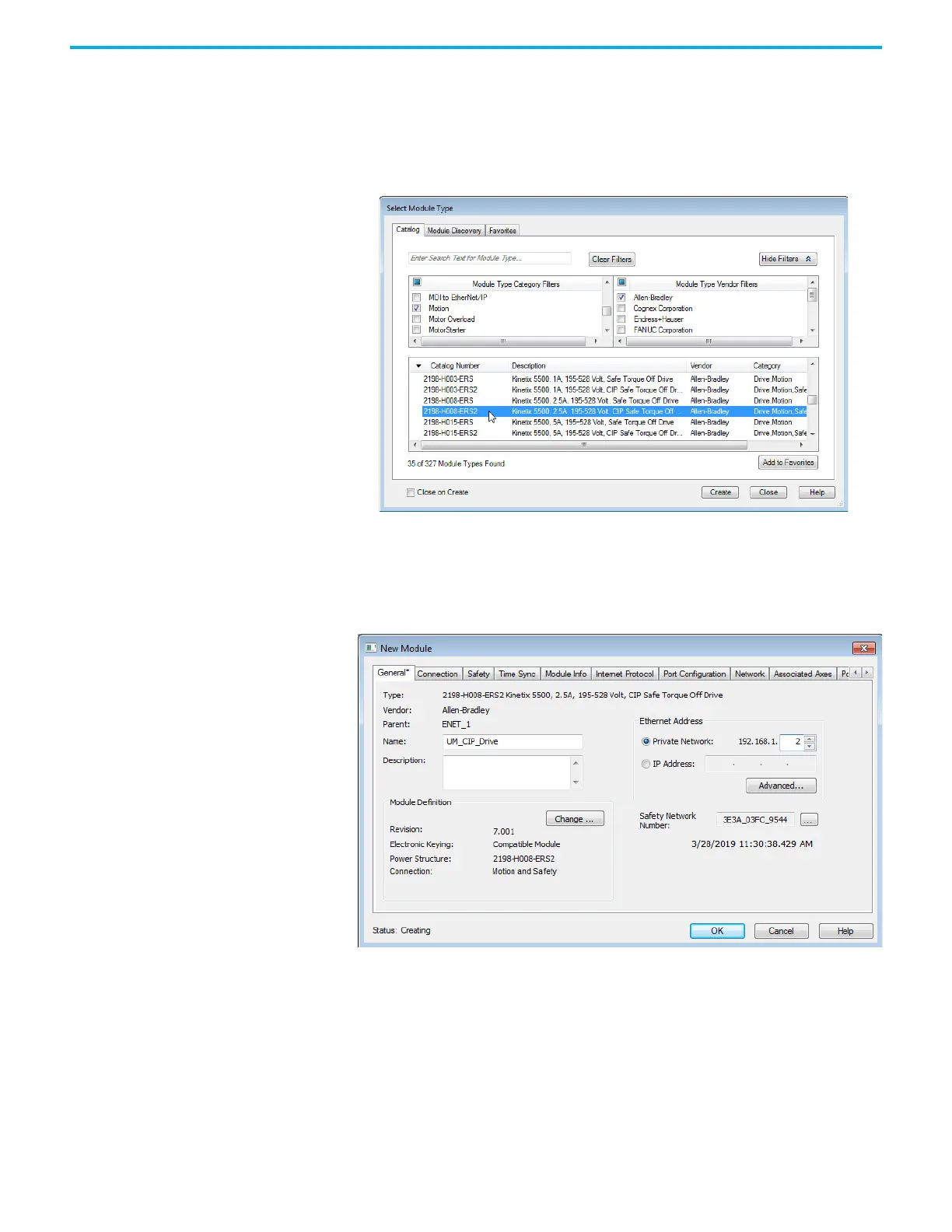

1. Below the controller you created, right-click Ethernet and choose New
Module.
The Select Module Type dialog box appears.
2. By using the filters, check Motion and Allen-Bradley, and select your
2198-Hxxx-ERS2 servo drive as appropriate for your actual hardware
configuration.
3. Click Create.
The New Module dialog box appears.
4. Configure the new drive.
a. Type the drive Name.
b. Select an Ethernet Address option.
In this example, the Private Network address is selected.
c. Enter the address of your 2198-Hxxx-ERS2 servo drive.
In this example, the last octet of the address is 2.
d. Under Module Definition click Change.
