114 Rockwell Automation Publication 2198-UM001M-EN-P - November 2022
Chapter 6 Configure and Start the Kinetix 5500 Drive System
• Manual restart indicates a transition from 0 to 1 on the SO.Reset tag is
required to allow torque after the SO.SafeTorqueOff tag has
transitioned from 0 to 1.
• Automatic restart indicates that torque will be allowed only by
transitioning the SO.SafeTorqueOff tag from 0 to 1. The SO.Reset tag
is used only for resetting safety faults.
10. Click Apply.

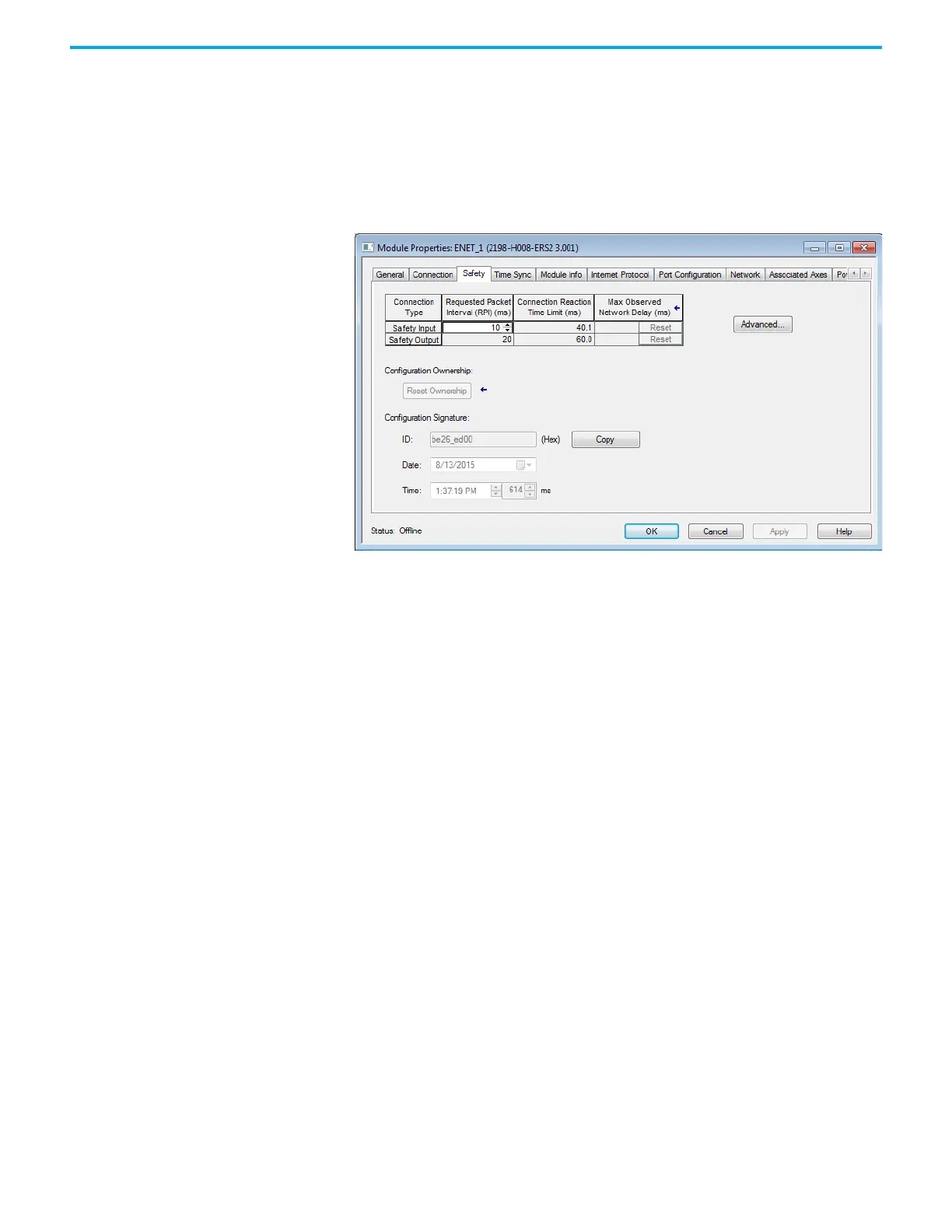

11. Click the Safety tab.
The connection between the owner and the 2198-Hxxx-ERS2 servo drive
is based on the following:
• Servo drive catalog number must be 2198-Hxxx-ERS2 (integrated)
• Servo drive safety network number
•GuardLogix slot number
• GuardLogix safety network number
• Path from the GuardLogix controller to the 2198-Hxxx-ERS2 drive
• Configuration signature
If any differences are detected, the connection between the GuardLogix
controller and the 2198-Hxxx-ERS2 drive is lost, and the yellow yield icon
appears in the controller project tree after you download the program.
12. Click Advanced.
