Publication 1734-UM001D-EN-P - April 2008
Calibrate Your Analog Modules 131

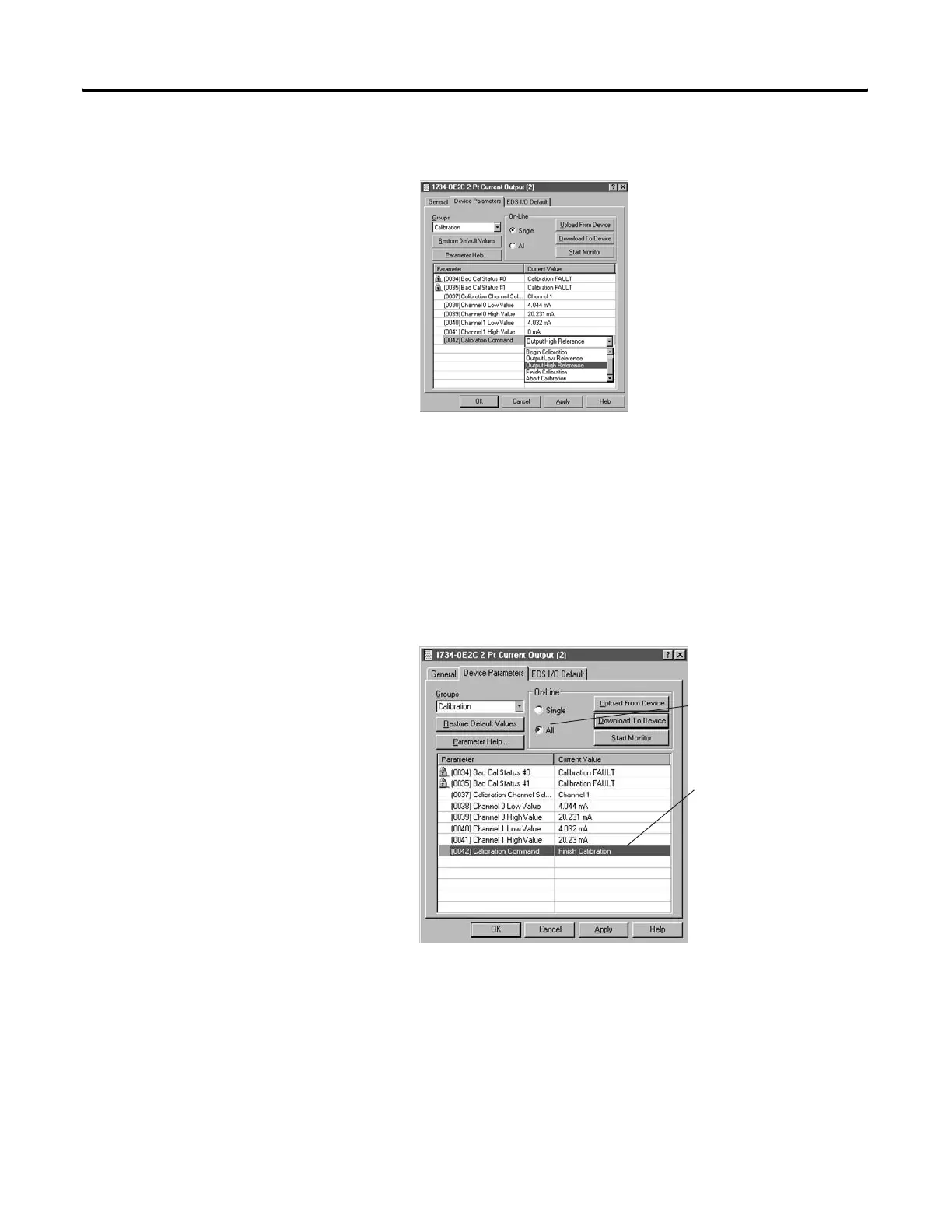

11. From the Device Parameters dialog, select the Output High Value, and
download to the module.
12. From the Device Parameters dialog, enter the value shown on the DVM,
which is 20.231 in this example.
13. Repeat these steps for the other channel.
14. From the Device Parameters dialog, click All and Finish Calibration to
complete the calibration process.
15. From the Device Parameters dialog, click Apply.
