Rockwell Automation POINTBlock Series User Manual

Publication 1734-UM001D-EN-P - April 2008

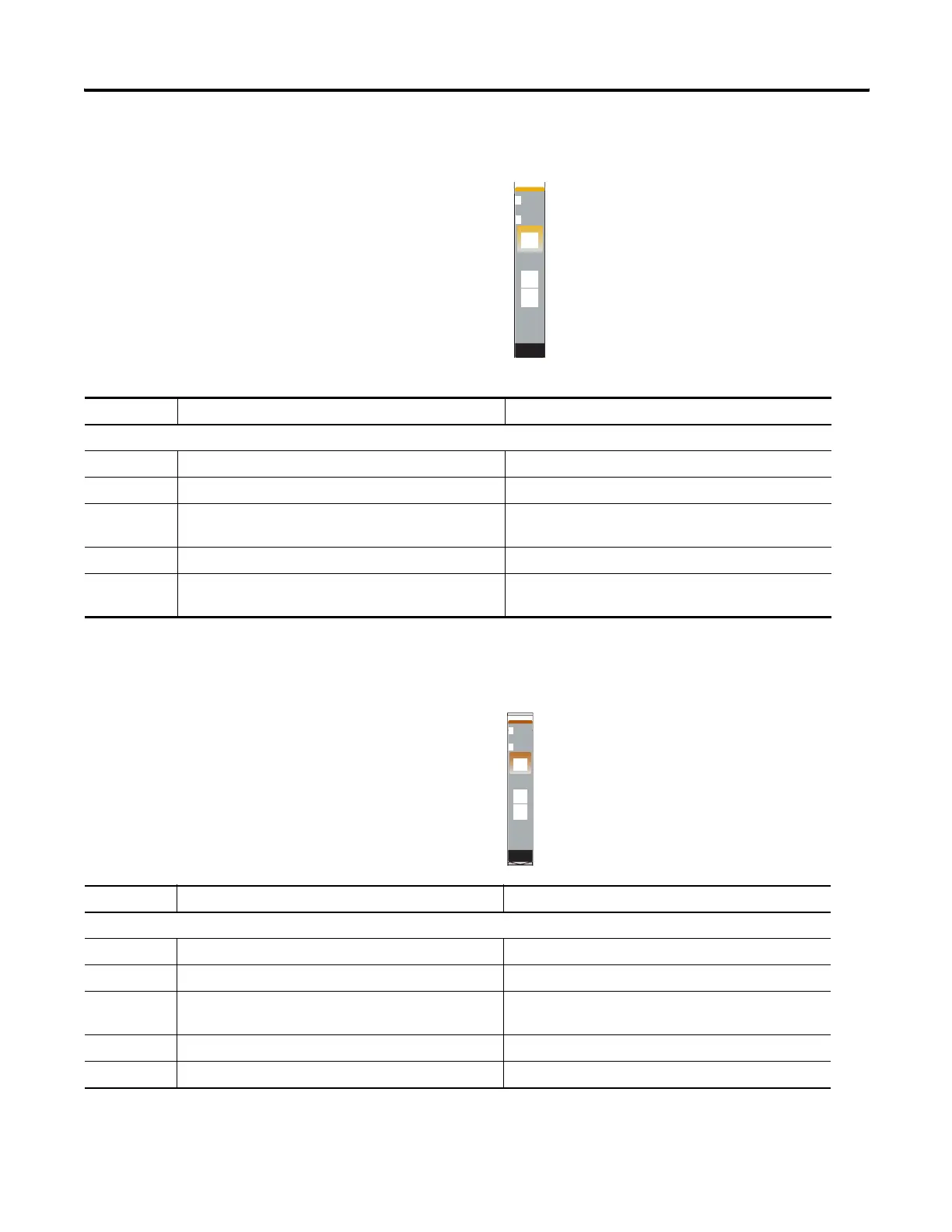

152 Troubleshoot with the Indicators
1734-OE2C Analog Current Output Module
1734-IE2V Analog Voltage Input Module
Module Status
4-20mA
Analog
Output
Module
Status
Network
Status
1734
OE2C
NODE:
0
1
Network Status
Status of Output 0
Status of Output 1
Indication Probable Cause
Recommended Action
Channel Status
Off Module is in CAL mode. None.
Solid green Channel actively controlling outputs None.
Flashing
green
Channel calibrating. None.
Solid red Unrecoverable fault may require device replacement. Replace device.
Flashing red No power, or open wire present. Apply power or verify wiring to load, and correct, as
needed.
Module Status
Network Status
Status of Input 0
Status of Input 1
Analog
Voltage
Input
Module
Status
Network
Status
1734
IE2V
NODE:
0
1
Indication Probable Cause Recommended Action
Channel Status
Off Module is in CAL mode. None.
Solid green Normal operation present with channel scanning inputs. None.
Flashing
green
Channel being calibrated. None.
Solid red No power or major channel fault present. Apply field power, or replace module, as needed.
Flashing red Channel is at end of range (-0.25, -10.25, or +10.25V). Operate within normal range.
