Working with Dialogs for Analog Output Modules
Read this section for information about how to complete entries on the
following dialogs for analog output modules:
• Configuration
• Alarm Configuration
• Fault/Program Action
• Calibration
To display the dialogs, you typically click Fault/Program Action,
Configuration, Alarm Configuration, or Calibration at the top of the General
dialog.
Working with the Configuration Dialog
This dialog does not appear for Listen Only connections. To complete the
entries on this dialog, proceed as follows.
1. From the top of the General dialog, click Configuration.
You see a Configuration dialog for a current or voltage module, based
on the type of module you added.

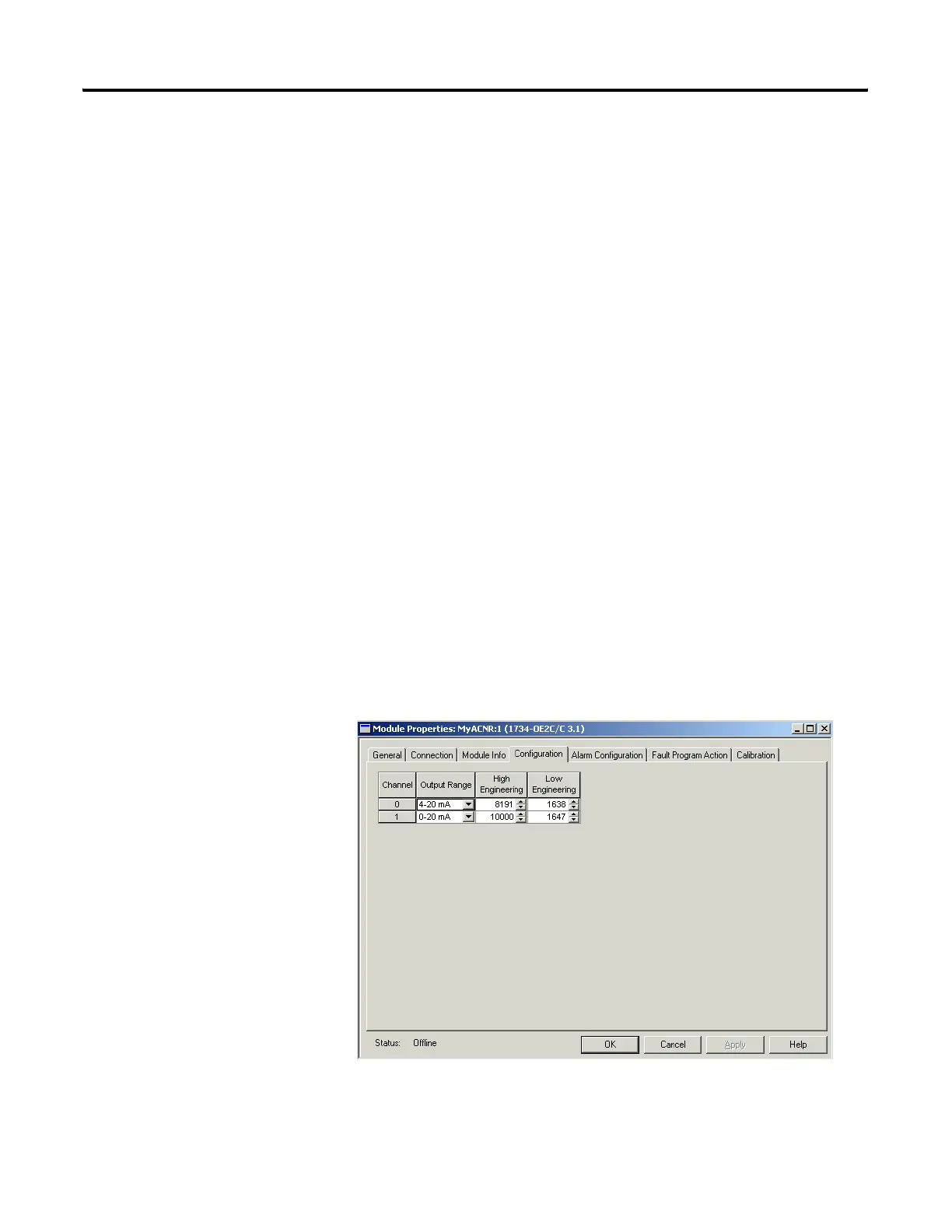

See the figure that shows configuration parameters for each channel in
individual rows on the grid with, for example, 1734-OE2C having two
output channels.
