182 Mounting Dimensions
POINTBlock Module

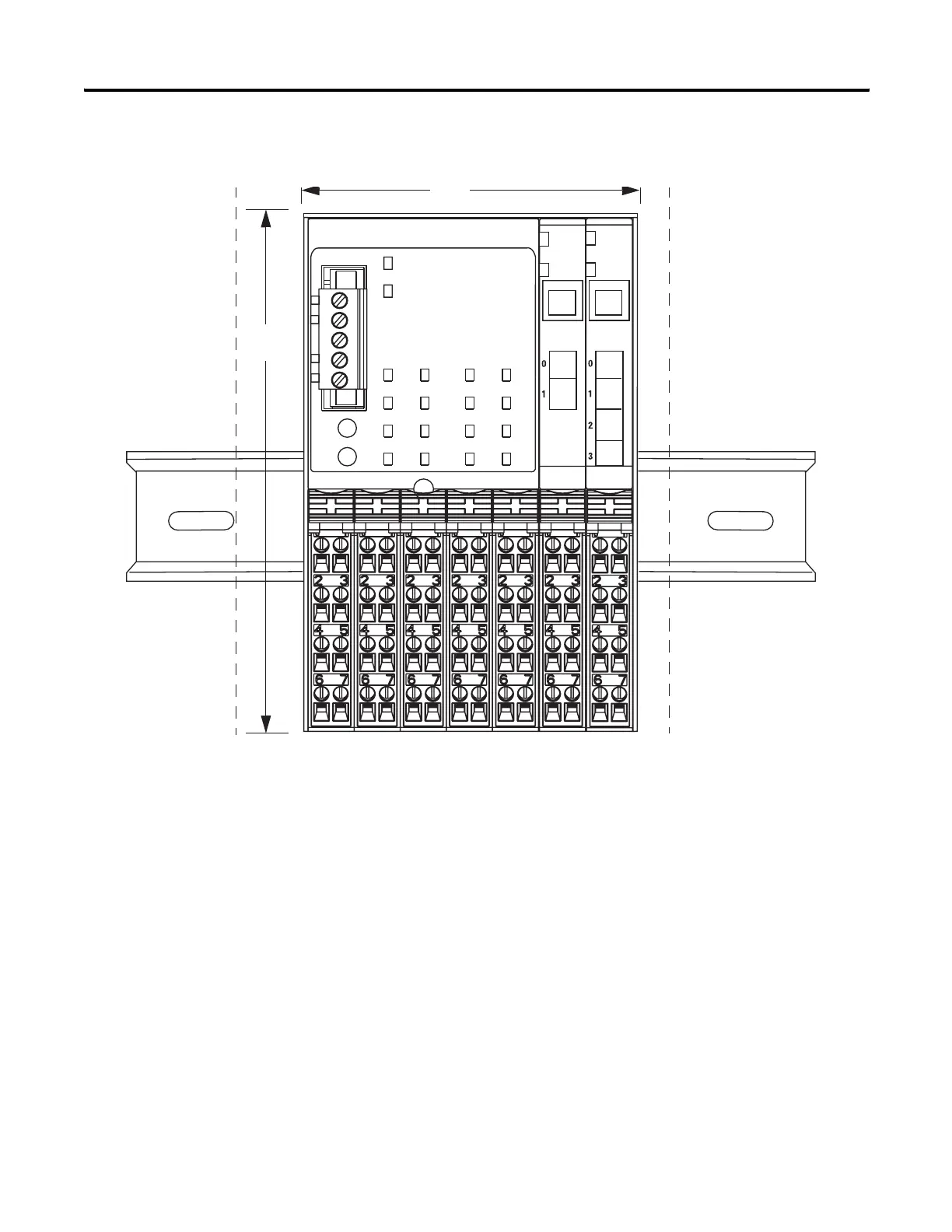

See the figure for mounting dimensions for a 1734-D POINTBlock module.
1
Gap All Around
mm (in)
133.4
(5.25)
1734D (HxWxL)
76.2 (3.0) x 60.0 (2.36) x 133.4 (5.25)
L = 60.0 + [# of I/O x 12.0] + [# of FPD x 25.4] mm
Secure DIN rail to mounting surface approximately every 200 mm (7.8 in.).
30977
