Rockwell Automation POINTBlock Series User Manual

Publication 1734-UM001D-EN-P - April 2008
Install POINT I/O Modules 41
1734-OB2EP Protected Output Module

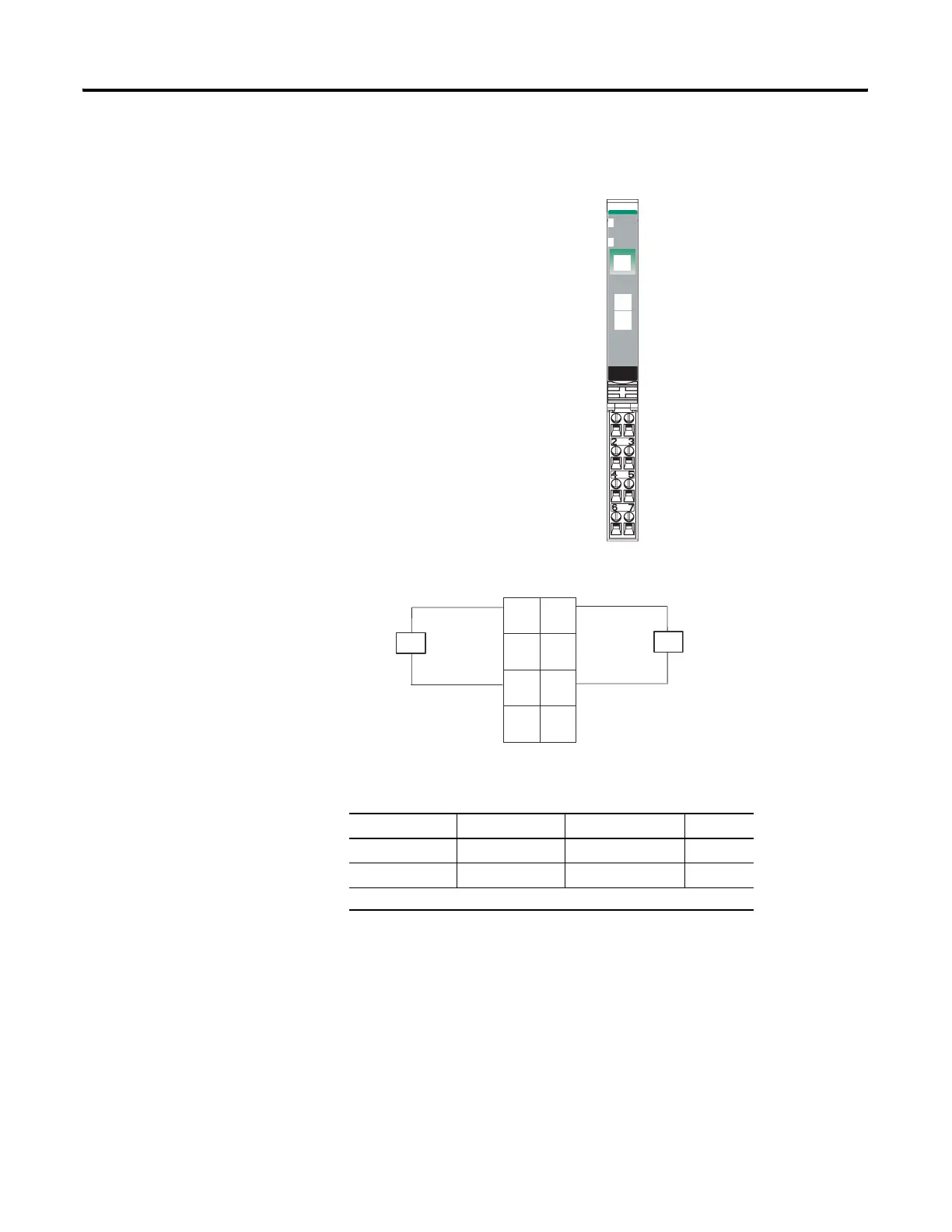

1734-OB2EP dc Protected Output Module Wiring Diagram
Protected
Sourcing
Output
Module
Status
Network
Status
1734
OB2EP
NODE:
0
1
42016
Module Status
Network Status
Status of Output 0
Status of Output 1
Output 0
Connection
Output 0
Connection
Output 1
Connection
Output 1
Connection
C
C
V
V
C = Common
V = Supply
Output Terminal Common Terminal Power
Channel 0 0, 2 4 6
Channel 1 1, 3 5 7
Module power is supplied from the internal power bus.
Out 0
Out 1
Out 1
Out 0
CC
V
V
44338
V = 12/24V dc, C = Common
Field power is supplied from internal power bus
0
2
6
4
3
5
7
1
Load
Load
