Publication 1734-UM001D-EN-P - April 2008
Configure POINT I/O Modules in RSLogix 5000 Software 197
Working with Dialogs for Analog Input Modules
Read this section for information about how to complete entries on the
following dialogs for analog input modules:
• Configuration
• Alarm Configuration
• Calibration
To display the dialogs, you typically click Configuration, Alarm Configuration,
or Calibration at the top of the General dialog.
Working with the Configuration Dialog
This dialog does not appear for Listen Only connections. To complete the
entries on this dialog, proceed as follows.
1. From the top of the General dialog, click Configuration.

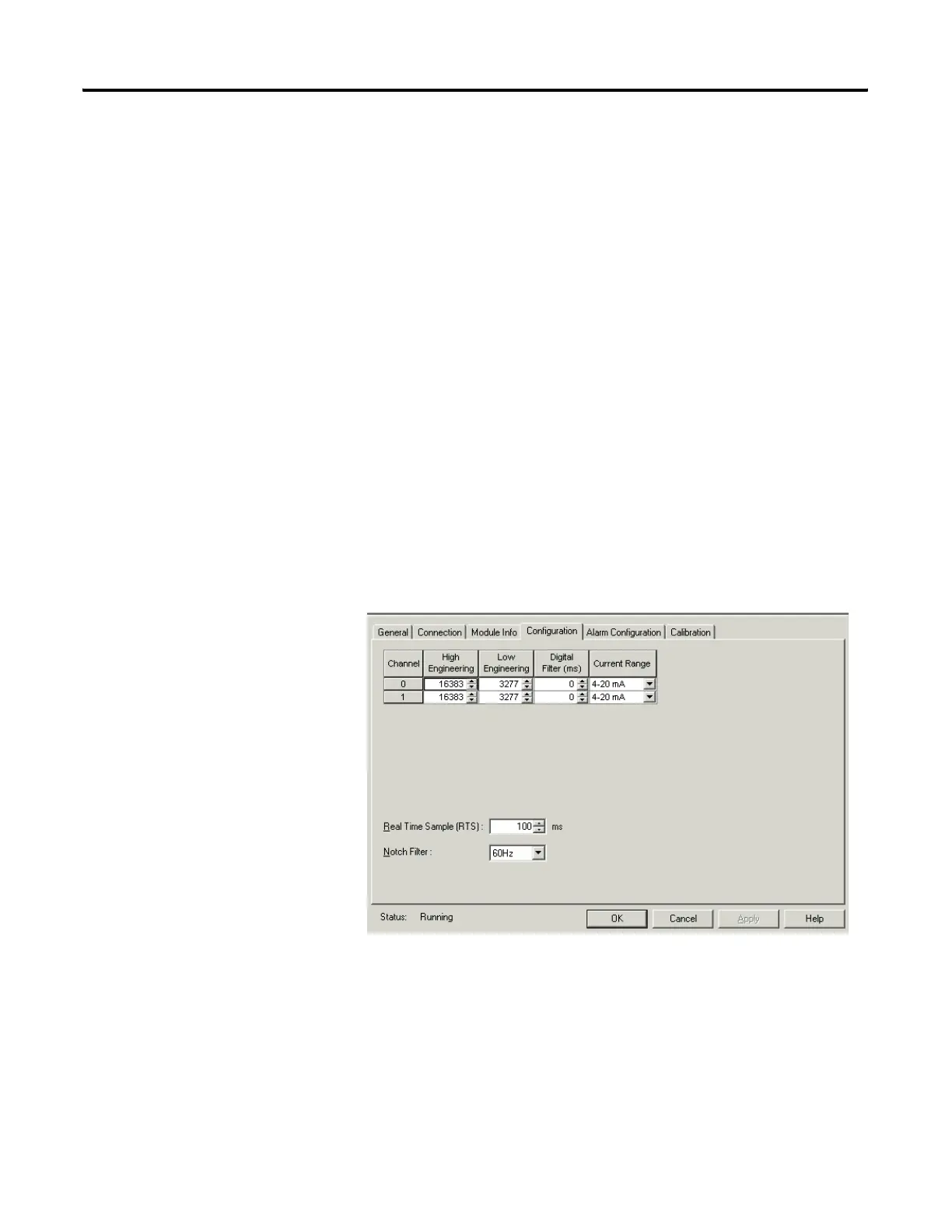

You see a Configuration dialog for a current or voltage module, based
on the type of module you added. See the figure for a Configuration
dialog for a current input module.
