Install POINT I/O Modules 29

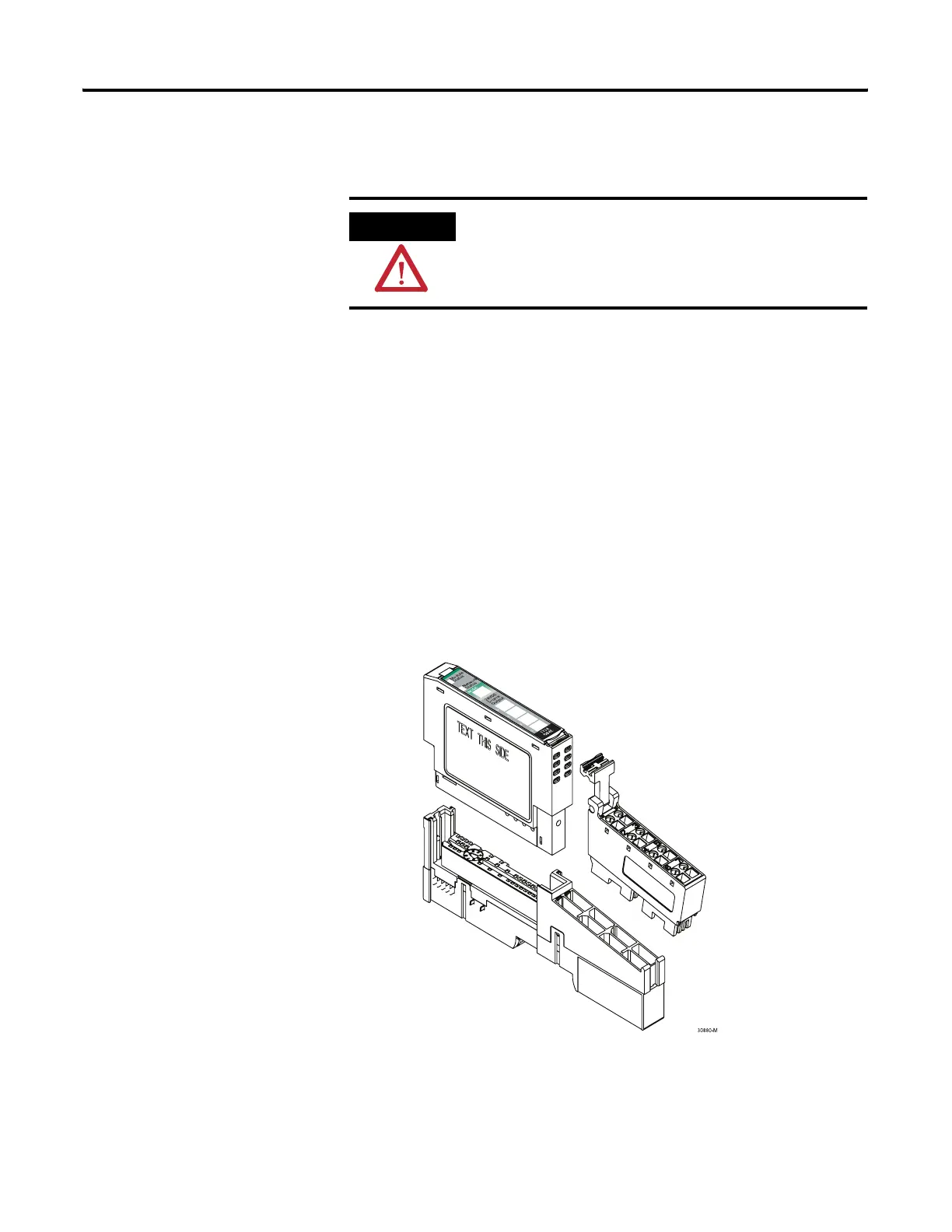

Remove a Mounting Base
To remove a mounting base, you must remove any installed module, and
remove the removable terminal block (RTB), if wired.
1. Unlatch the RTB handle on the I/O module.
2. Pull on the RTB handle to remove the RTB.
3. Press in on the module lock on the top of the module, and pull up on
the I/O module to remove it from the base.
4. Remove the module to the right of the base you are removing, noting
that the interlocking portion of the base sits under the adjacent module.
5. Use a small-bladed screwdriver to rotate the orange DIN-rail locking
screw on the mounting base to a vertical position, noting that this
releases the locking mechanism.
6. Lift the mounting base straight up to remove.
WARNING
When you insert or remove the module while backplane power
is on, an electrical arc can occur. This could cause an explosion
in hazardous location installations. Be sure to remove power or
that the area is nonhazardous before proceeding.
30880
