86 Install POINTBlock I/O Modules

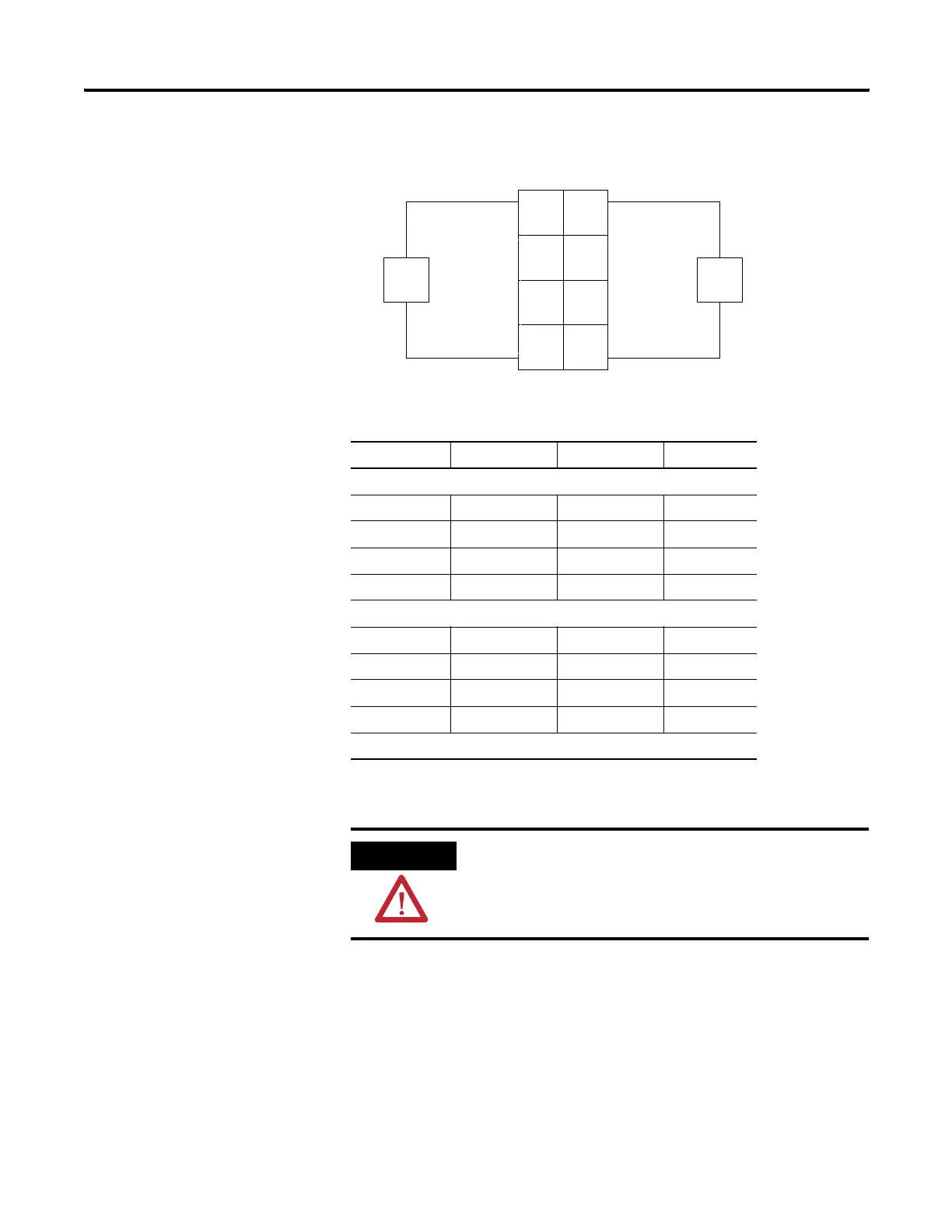

Input Wiring Diagram
Channel Input Terminal Return Voltage
Remote Termination Block 1
00 4 6
11 5 7
22 4 6
33 5 7
Remote Termination Block 2
40 4 6
51 5 7
62 4 6
73 5 7
120V ac is supplied through the internal power bus.
ATTENTION
When connecting more then one wire in a termination point,
make sure that both wires are the same gauge and type.
Prox
In 0 In 1
In 2
L2
L1 L1
L2
In 3
Prox
41967ac
L1 = 120V ac
L2 = Return
3
5
7
01
2
4
6
