Publication 1734-UM001D-EN-P - April 2008
Troubleshoot with the Indicators 153

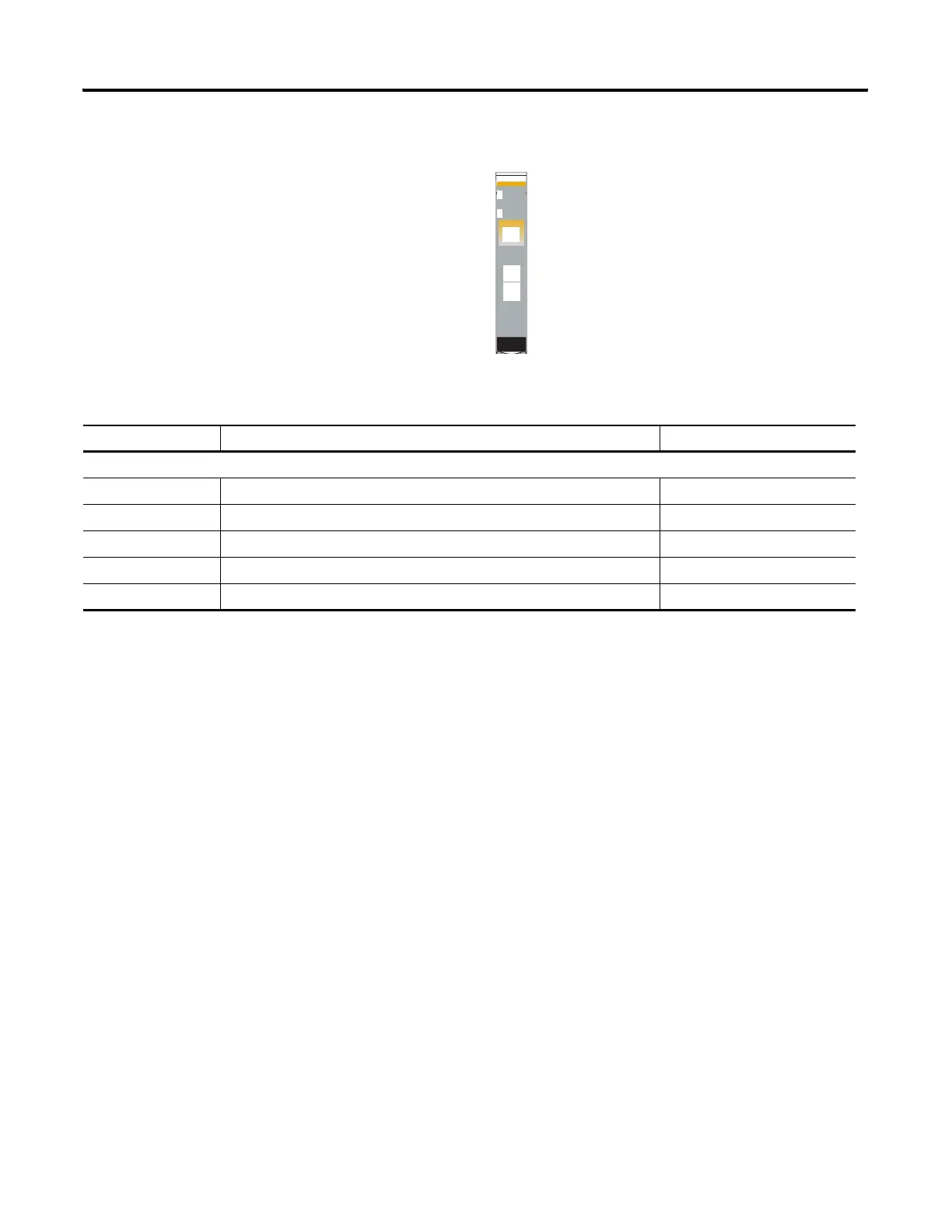

1734-OE2V Analog Voltage Output Module
Module Status
Network Status
Status of Output 0
Status of Output 1
Analog
Voltage
Output
Module
Status
Network
Status
1734
OE2V
NODE:
0
1
Indication Probable Cause Recommended Action
Channel Status
Off Module is in CAL mode. None.
Solid green Normal operation present with channel actively controlling outputs. None.
Flashing green Channel being calibrated. None.
Flashing red A Low or High Clamp alarm is present. Operate within normal range.
Solid red No field power is present. Apply field power.
