Configure POINT I/O Modules for DeviceNet Networks 227
Configure Analog Modules
Using RSNetWorx Software
Read this for a description of how to configure any analog module. The
1734-IE2C and 1734-OE2C modules in this procedure are representative of
input and output analog modules. The actual dialogs for your particular
module may not be identical to the ones shown here. To configure analog
input modules, proceed as follows.
1. Open your RSNetWorx for DeviceNet software.

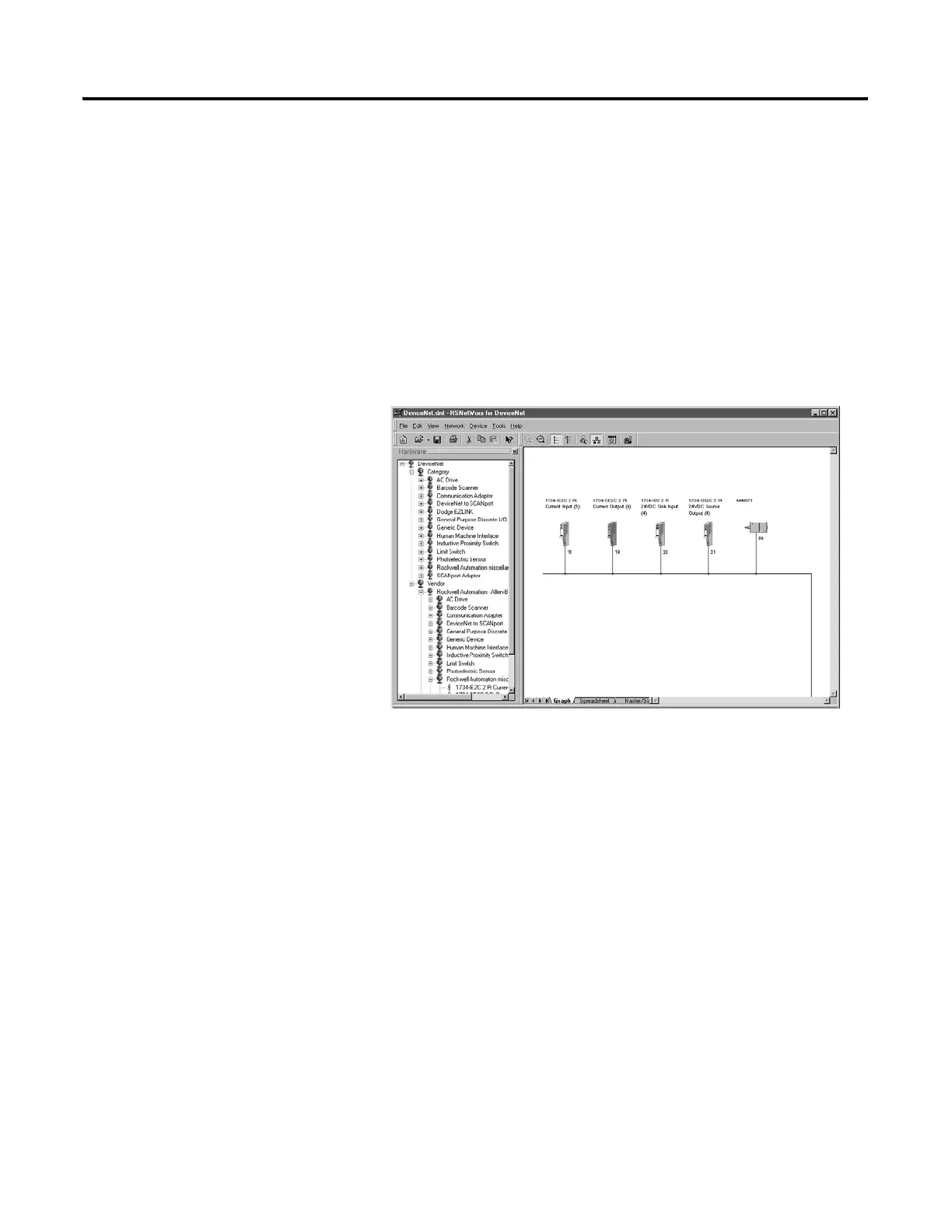

You see the RSNetWorx for DeviceNet dialog.
2. From the RSNetworx for DeviceNet dialog, use the selections in the
window on the left construct your system, or if your network is up, click
Browse.
3. Double-click the graphic for the desired module to display the General
dialog.
