4. From the Device Parameters dialog, at Groups select All parameters to
display each item and POINTBus to display only the run/idle command
and autobaud.

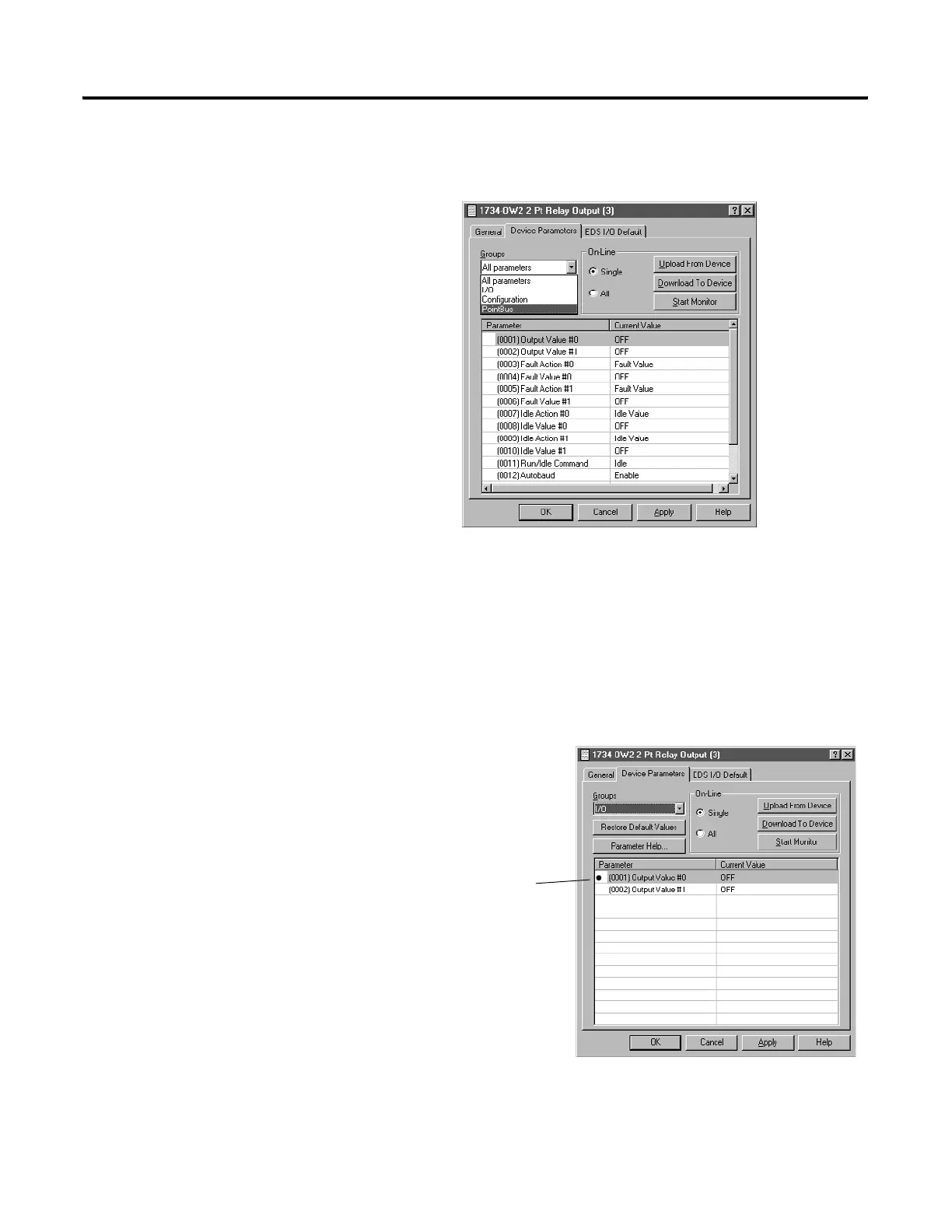

5. From the Device Parameters dialog, to monitor the output, click Start
Monitor, noting the following:
• The output value is displayed for each scan.
• Click All to scan all values.
• The Start Monitor button turns to Stop Monitor during monitoring.
• Click Stop Monitor to stop monitoring the selected parameters.
• Identify monitoring by a ball appearing momentarily next to the
selected item during each scan.
Monitoring is identified
by the ball appearing
momentarily next to the
selected item during
each scan.
