Rockwell Automation POINTBlock Series User Manual

Publication 1734-UM001D-EN-P - April 2008
202 Configure POINT I/O Modules in RSLogix 5000 Software

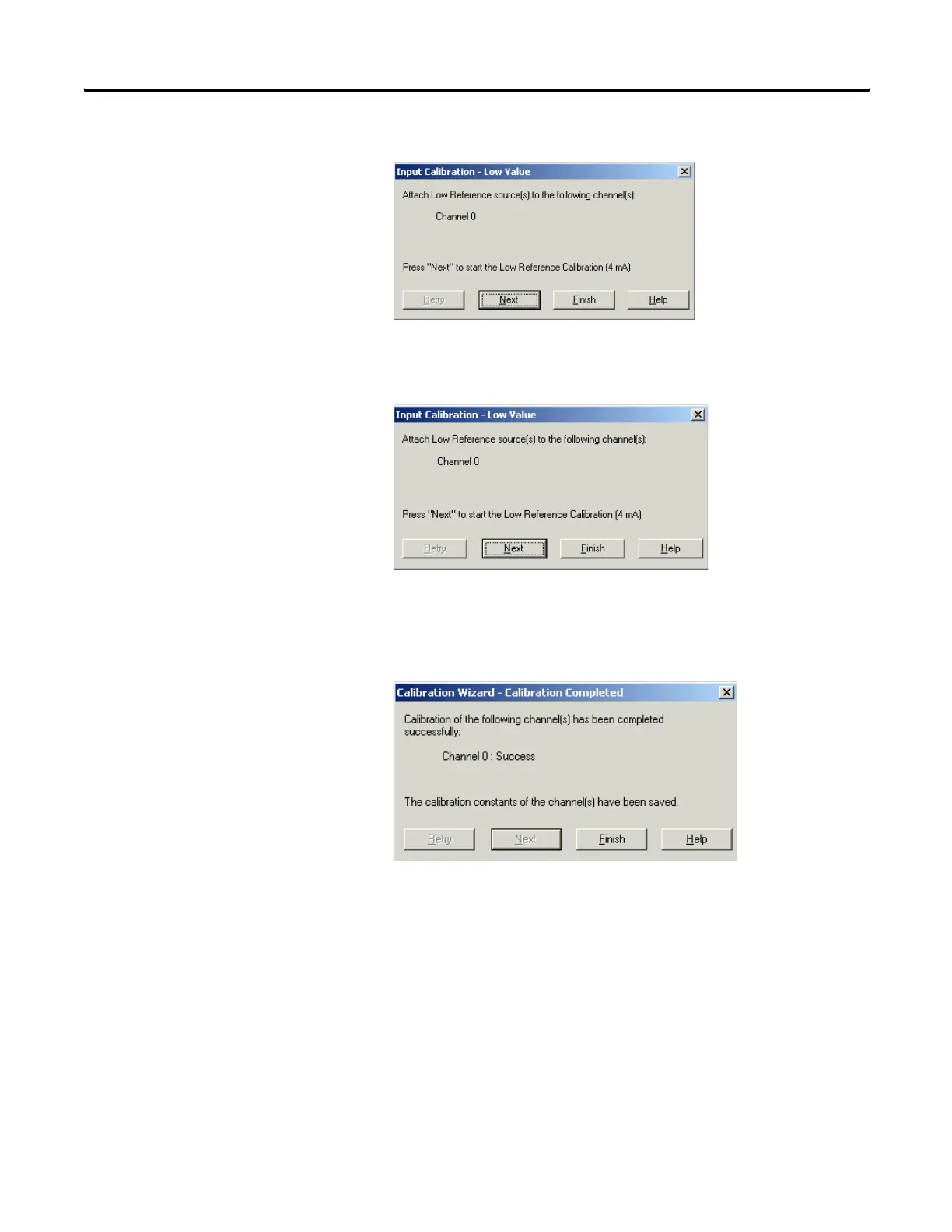

You see the Low Value dialog.
6. From the Low Value dialog, click Next to start calibration.
You see the High Value dialog.
7. From the High Value dialog, click Next to start calibration.
You see the Calibration Completed dialog that shows you saved the
changed calibration constants of the channel.
