Publication 1734-UM001D-EN-P - April 2008
Configure POINT I/O Modules in RSLogix 5000 Software 201

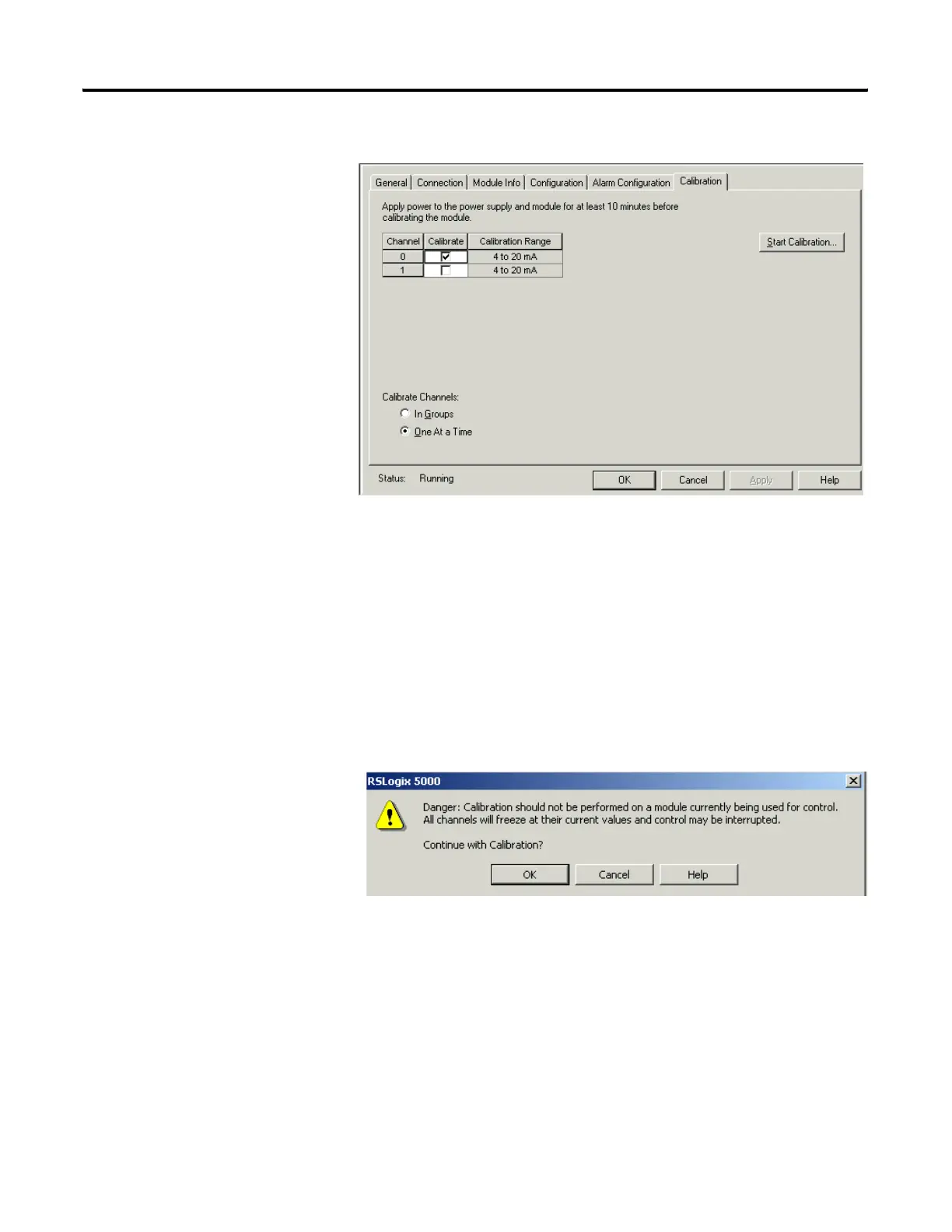

See the figure for a Calibration dialog for a current input module.
2. Check the Calibrate checkbox to specify which channel to calibrate.
3. Under Calibrate Channels, select One At a Time.
4. Click Start Calibration, which is active when the system is online, and
you selected at least one of the channels.
Note that when you press the F1 button on your keyboard or click Help
from the wizards and warning messages that appear during calibration,
you get detailed information about related procedures.
You see a Danger dialog.
5. From the Danger dialog, for a module not currently used for control,
click OK.
