Publication 1734-UM001D-EN-P - April 2008
Configure POINT I/O Modules in RSLogix 5000 Software 189

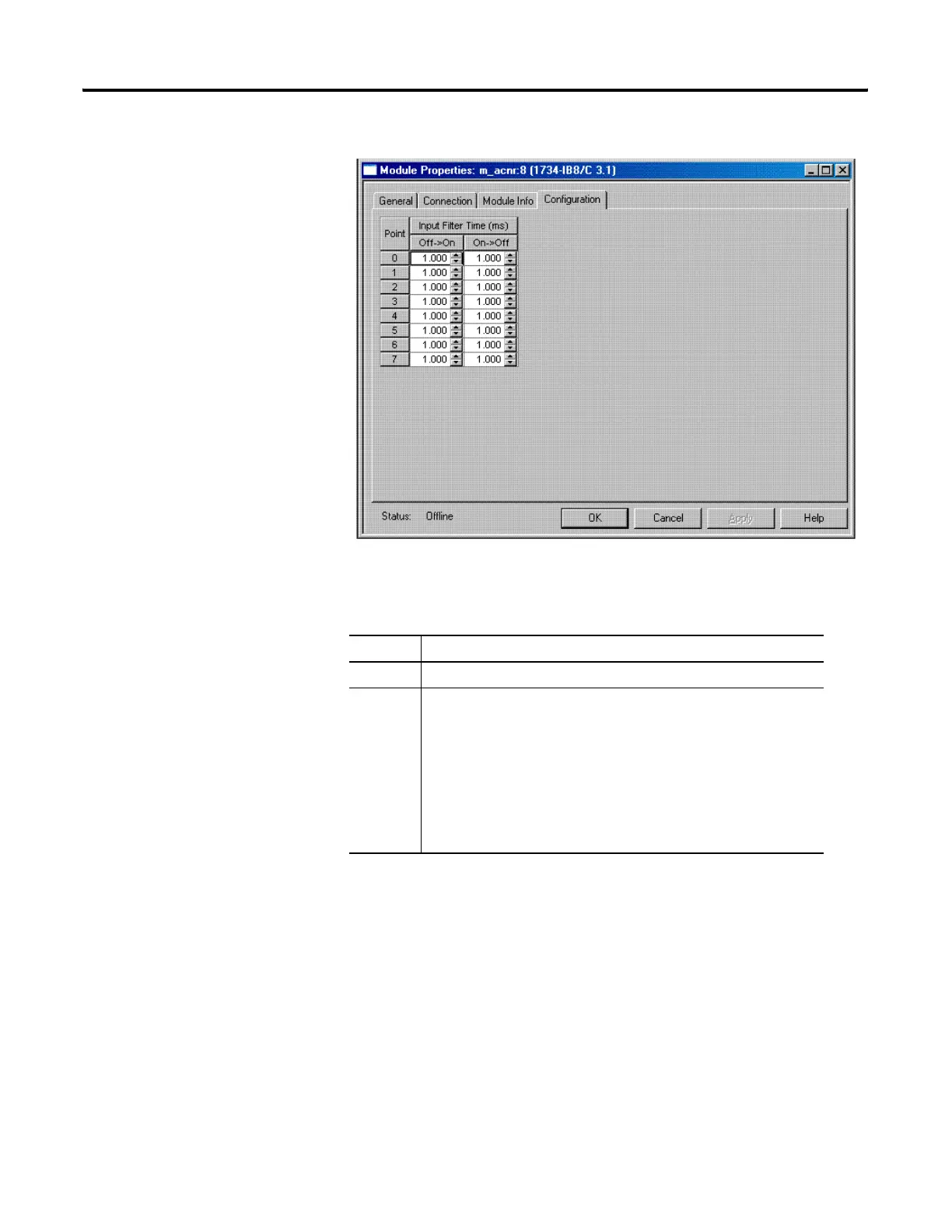

See the figure for a Configuration dialog for an 8-point input module.
3. From the Configuration dialog, complete the entries for Input Filter
Time (ms) for Off-On and On-Off for each point, referring to the table.
4. From the Configuration dialog, perform one of the following:
• Click another tab at the top of the dialog.
or
• Click OK to save changes and close the dialog.
or
• Click Cancel to return to default values.
or
• Click Apply to save changes you made on any of the dialogs and
continue to display the dialog, noting that you enable the Apply
button when you make changes to any of the dialogs.
Feature Description
Channel Displays channels you use to set channel configuration parameters.
Input
Filter Time
Displays Off to On or On to Off transition filter constant.
• A high signal must be present for this amount of time before
the module reports an On.
• a low signal must be present for this amount of time before
the module reports an Off.
• Enter a value in milliseconds.
• The default is 1 ms (1000 ms).
