Publication 1734-UM001D-EN-P - April 2008
210 Configure POINT I/O Modules in RSLogix 5000 Software

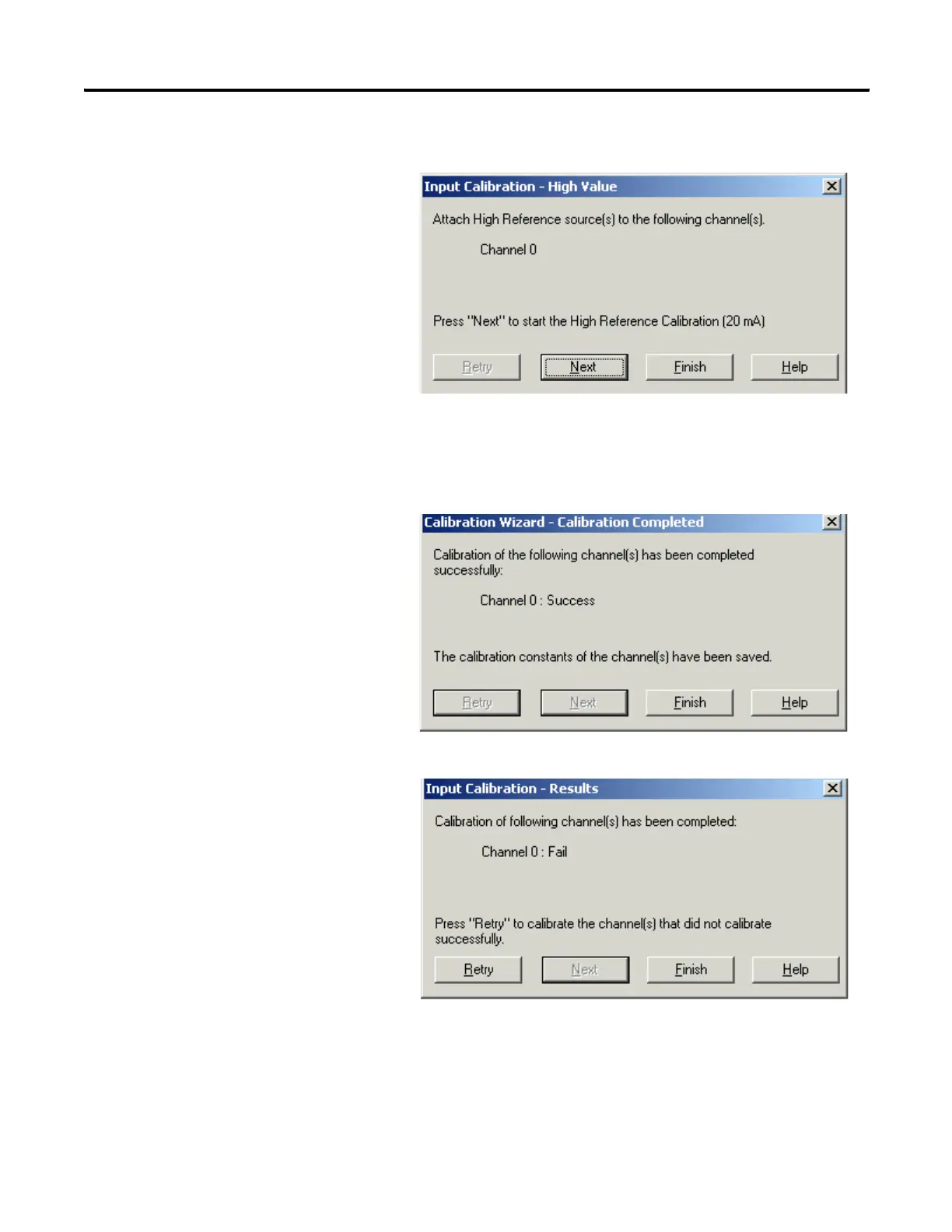

You see the High Value dialog.
7. From the High Value dialog, follow the instructions you see and click
Next to start calibration.
8. If calibration completes successfully, you see the Calibration Completed
dialog.
If calibration fails, the Results dialog shows a failed calibration.
9. If calibration is successful, click Finish; otherwise, from the Results
dialog, click Retry to calibrate the channel that did not calibrate
successfully and repeat the process until calibration is successful.
10. Repeat calibration for each channel, if applicable.
