Publication 1734-UM001D-EN-P - April 2008
64 Install POINT I/O Modules

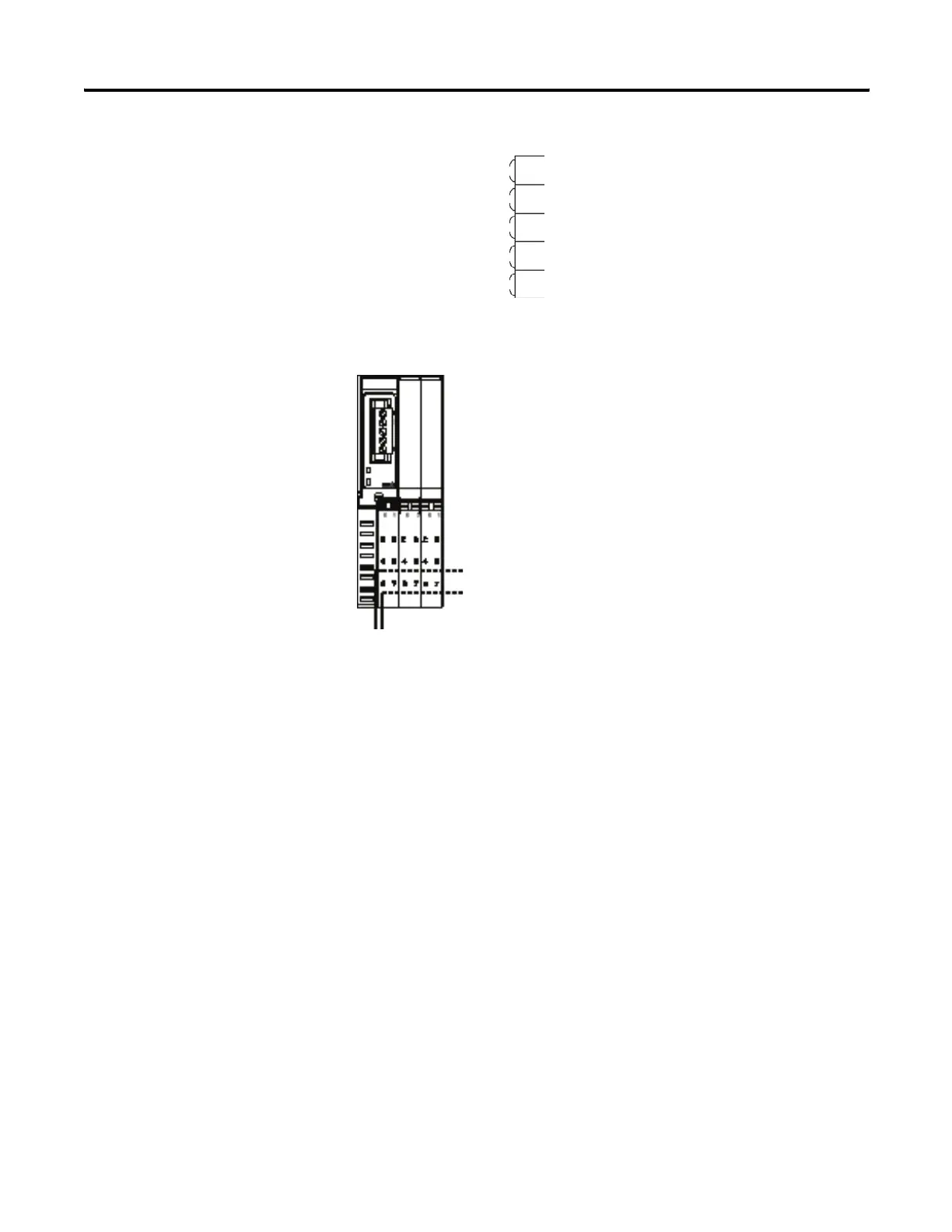

Wire the Communication Interface Module for ac Modules Only
DeviceNet
connection
Black
Blue
Bare
White
Red
-V
CAN - Low
Shield
CAN - High
+V
1
2
3
4
5
120V ac
PDN OW2OW2
ac Power Bus
