Publication 1734-UM001D-EN-P - April 2008
Install POINT I/O Modules 69

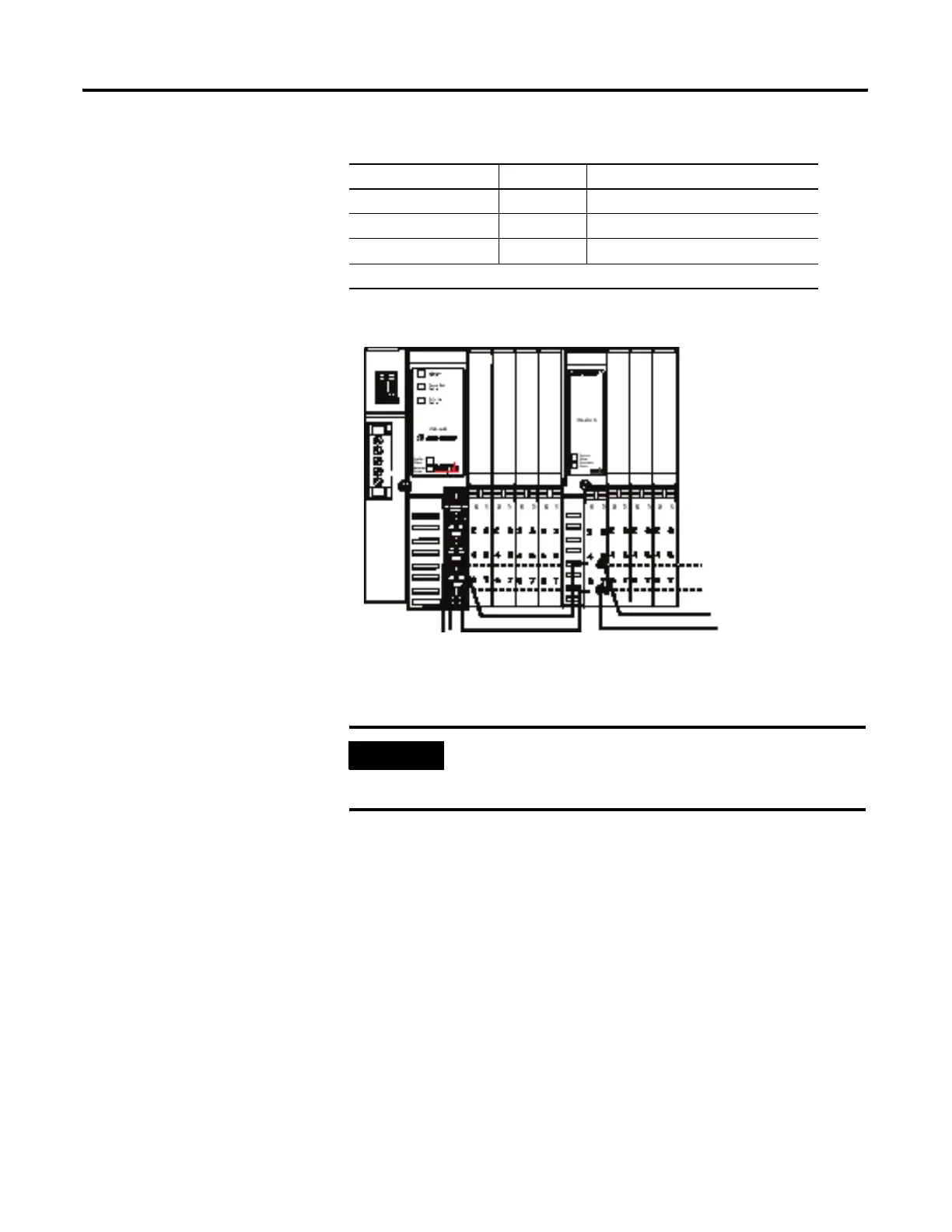

Example of Continuing Power
Connect Terminal Terminals (for continuing power)
+V dc 6 7
-V dc 4 5
Chas Gnd 2 3
12/24V dc becomes the internal power bus for modules to the right.
IMPORTANT
The 1734-EP24DC expansion power supply can be used with
POINT I/O adapters only. This 1734-EP24DC power supply cannot
be used with a 1734-PDN module or 1734D POINTBlock modules.
EP24DC
ADN
Example of continued power.
12/24V dc only
1734adn4
O
B
2
O
B
4
I
B
4
I
B
2
I
E
2
C
I
E
2
V
O
E
2
C
