3.3 System Overview

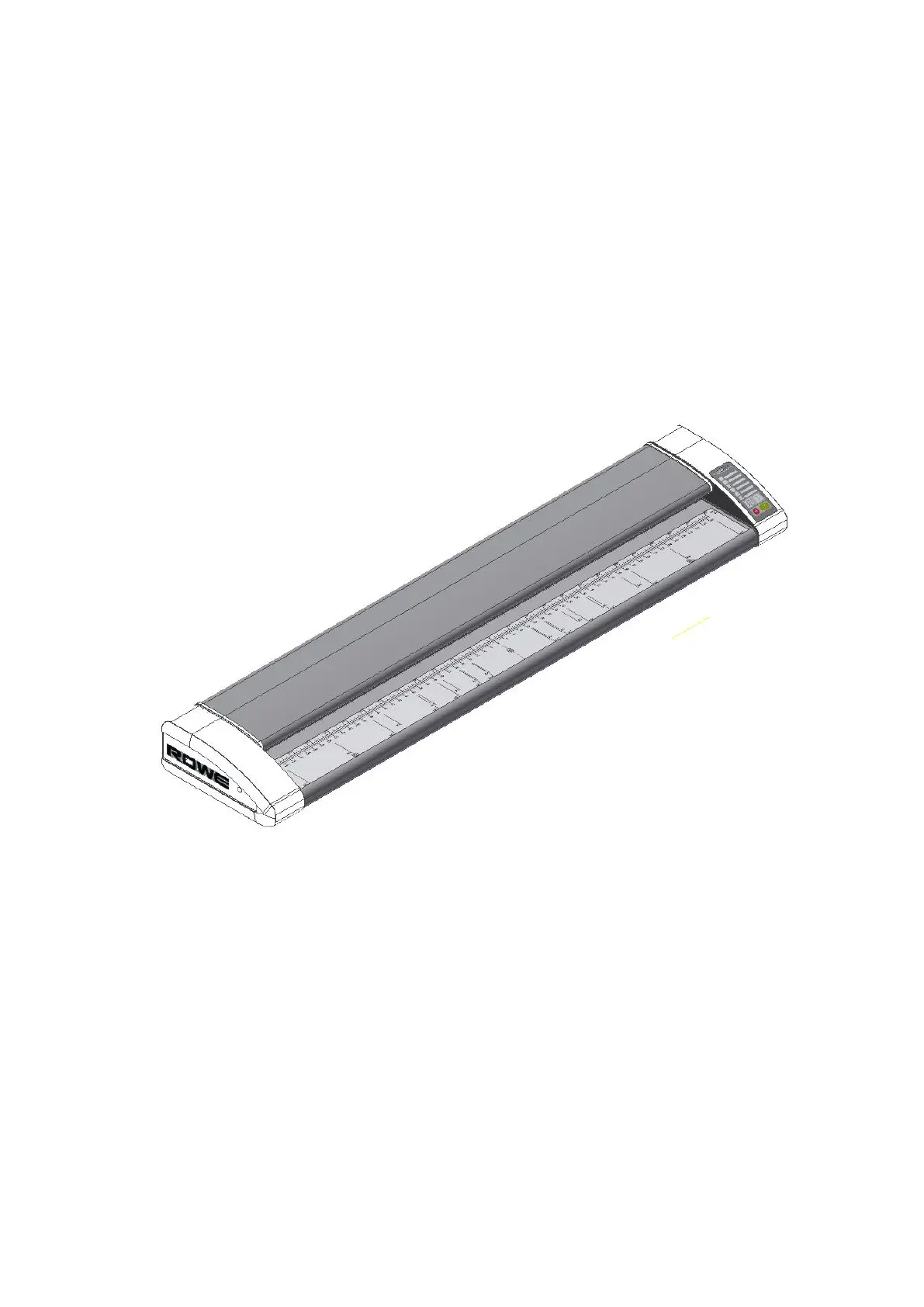

Fehler! Verweisquelle konnte nicht gefunden werden. shows the ROWE Scan 850i
front view. The following components are shown:
3. Scanner top
4. Control panel
5. Feed table with graduation for formats
6. Feeding slot for document feed
7. Zero point
8. Locking scanner top (on both sides)
Figure 3.1: ROWE Scan 850i
Fehler! Verweisquelle konnte nicht gefunden werden. shows the ROWE Scan 850i control
panel. It includes the following components:
1. Start key
2. Stop key
3. Forward motion key
4. Backward motion key
5. Favorite keys (individual allocation of scan settings via ROWE SCAN/COPY/PRINT
APP)
6. Operating LED
7. Malfunction indicator LED
