5.5.3. Software DSC
The image data generated by the BE board is transferred to the PC Memory. The DSC
processes image data input in various image forms and exports them to the VGA card.

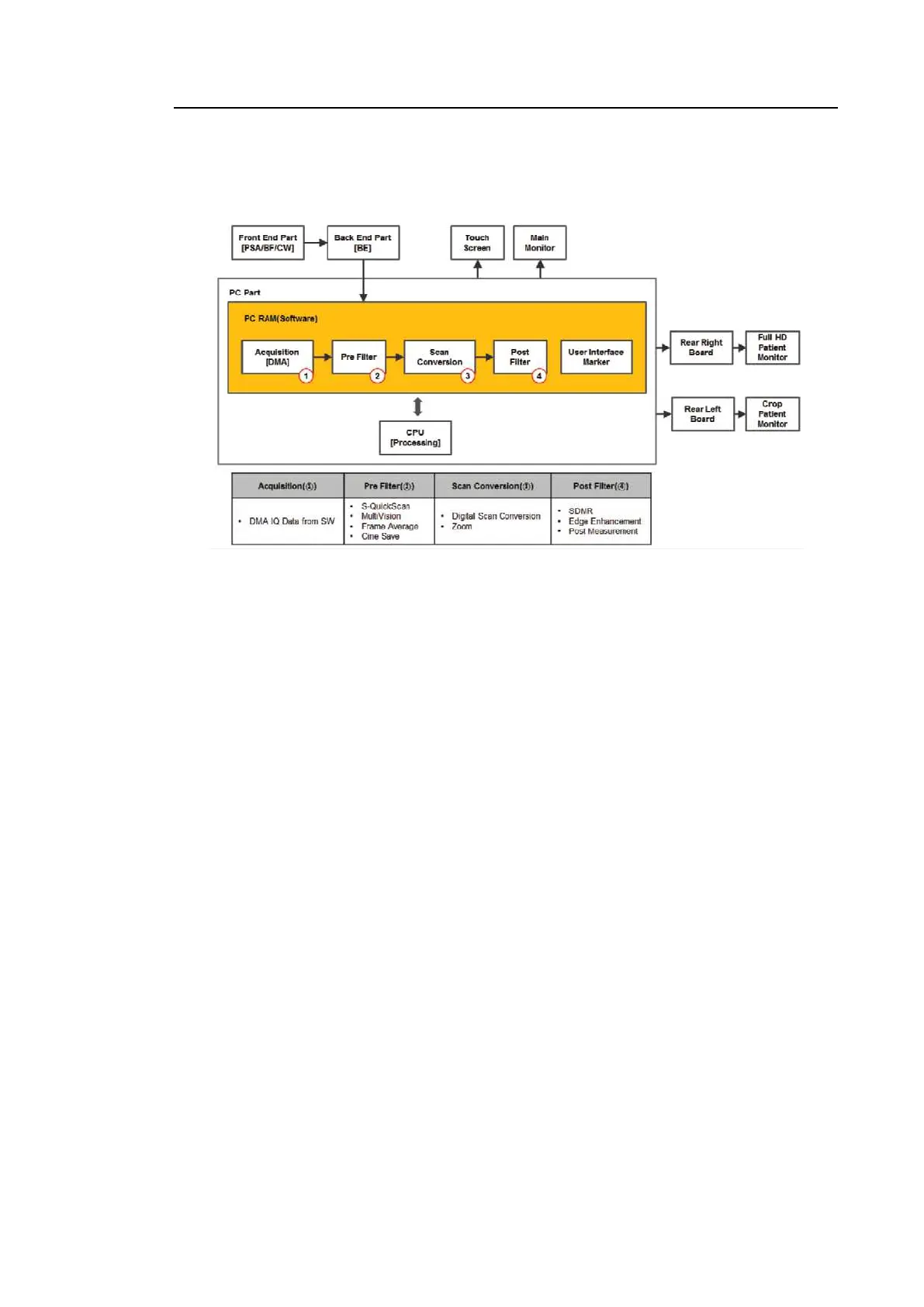

[Figure 5.16 DSC Block Diagram]
5.5.3.1. Specification
• Cine for 5,140 frame
• Loop Review for 8,192 lines
• Zoom
• Edge Enhancement
• Multi-Slice View
• Dynamic MR (Optional)
• Quick Scan
• Real-Time Auto Calculation time Doppler Auto Trace
• Free Angle M-Mode
• Post measurement
• Post image optimizing process Arbitrary M mode
• Help function
