5.4.1. Main Functions of PSA (Probe Select Assembly)
PSA connects the system to the probes. This product is equipped with four probe connectors
(408-pin) and one CW-probe. It has a 3D Probe Drive Path, Probe Insert Path, Port Select Path,
and CW Path, and a Relay circuit that allows the user to select one probe out of four probes.

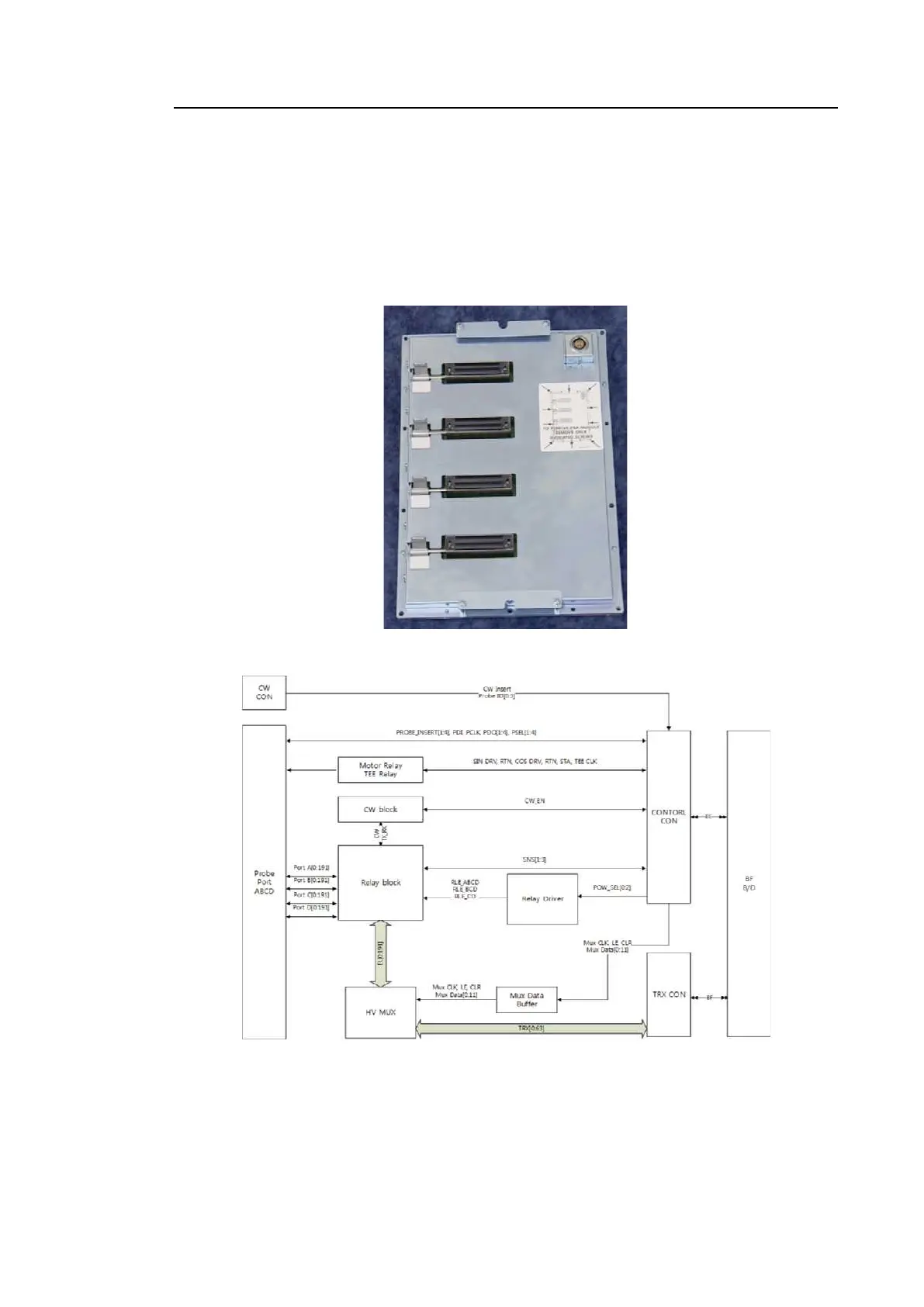

[Figure 5.3 PSA Board Location Image]
