1 – 16 HS40 Service Manual
1.2.3. Console
The console consists of two parts - the inner and outer units. The interior of the console mainly
contains devices that produce ultrasound images. On the exterior of the console are various
connectors, probe holders, storage compartments, handles, and wheels, etc.
1.2.3.1. Rear Panel
A monitor and other peripheral devices, like a printer, are connected via the rear panel at the ba
ck of the system.
①
Audio port (Output): Used for audio signal output.
(Input: Not supported.)
②
S-VHS Port (Output): Provides an S-VHS
connection for a VCR.
③
RGB Port (Output): Provides analog signal output
to be displayed on the monitor.
④
USB port: Used to connect to peripheral USB
devices.
⑤
Network port: Connect to a network. You can
transfer patient information to another server via
DICOM network.
⑥
HDMI port (Output): Outputs digital signals to the
monitor. (Input: Not supported.)
⑦
Trig port (In/Output): Not used.

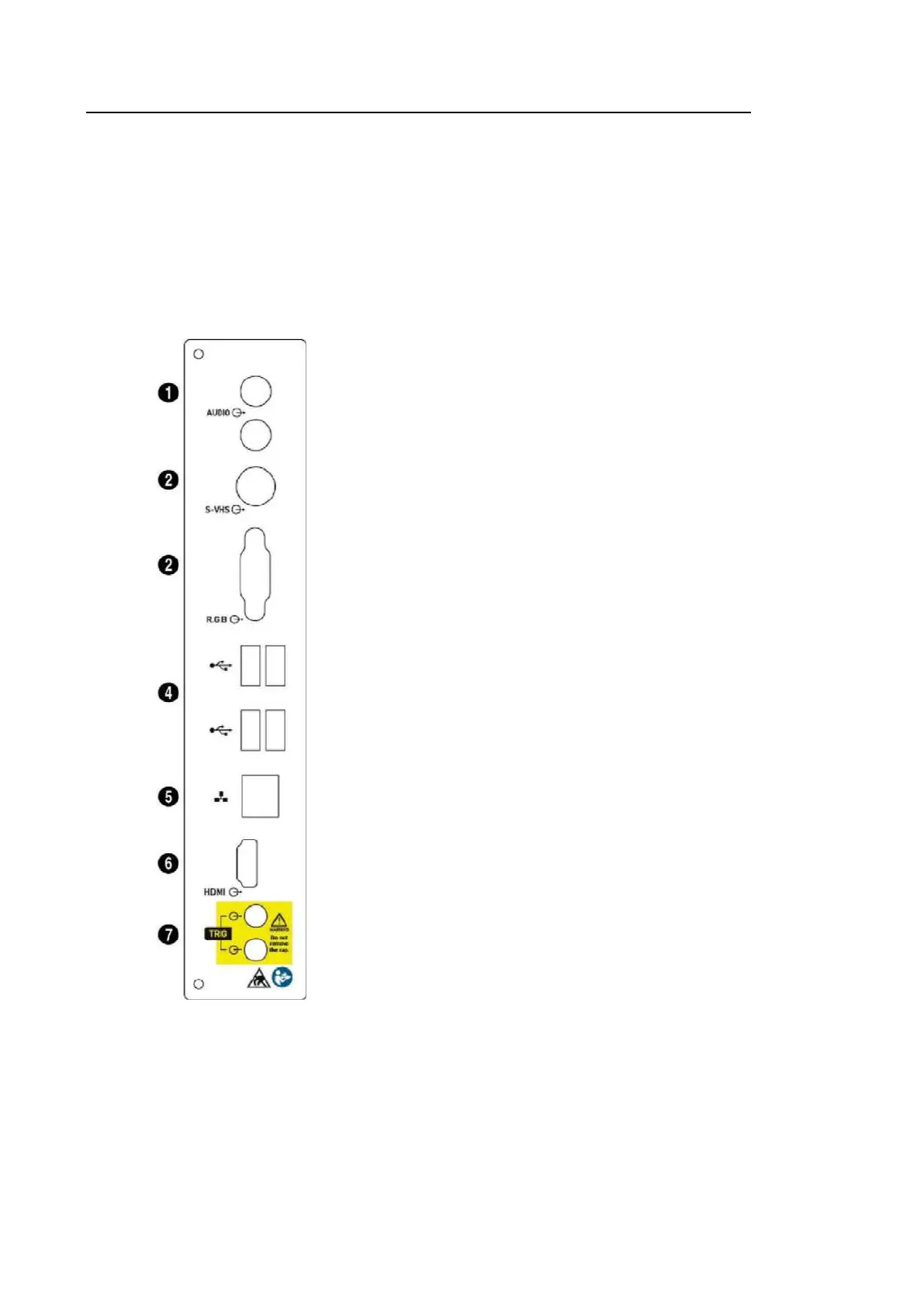

[Figure 1.7 Rear Panel]
