5.5. PC Part
5.5.1. PC Module
Certain functions of Digital Signal Processing, previously handled by the hardware, are now
implemented by the Software Program. This module provides various peripheral ports for
connecting the PCI-Express 1 Lane and user interface for controlling the Ultrasound System
and receiving Base-Band IQ Data. This module consists of a Dual Port VGA Card for the Main
Monitor and Touch Panel outputs and a Rear Module for the exporting of various external
images.
5.5.1.1. Specification
• PC Module: Advantech , Com Express Module (SOM-5893)
• CPU: AMD 2.7GHz, R-Series (Bald Eagle)
• RAM: DDR3 SDRAM 8GB
• Storage: HDD 500GB SATA-2 2.5”, 7200RPM
• OS: Windows 7 64bit
• Monitor: 21.5” Full-HD (1920 X 1080) LED Display
• VGA: Internal Graphic Chip (Radeon HD9000)

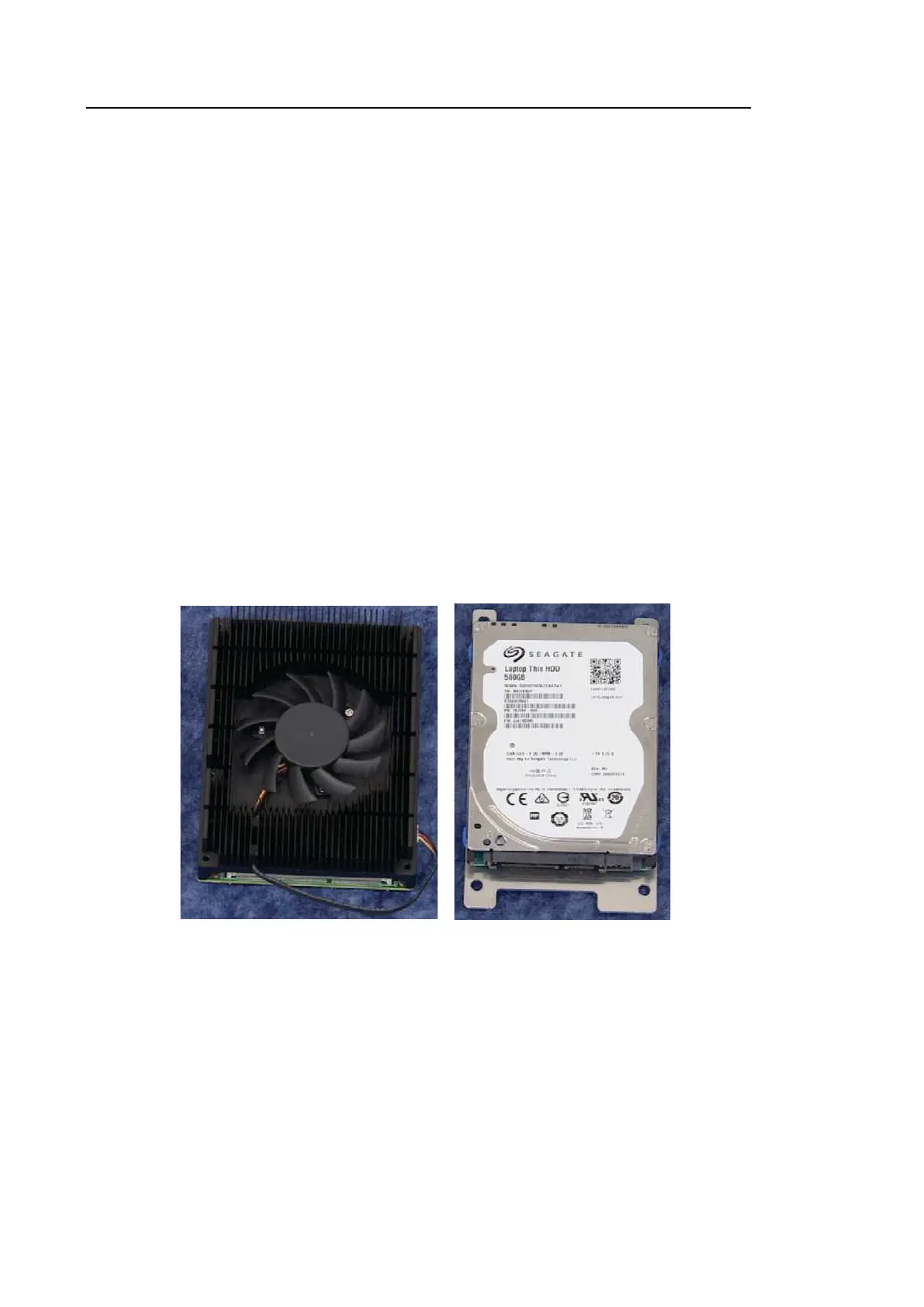

[Figure 5.13 PC Module & Storage]
