1 – 22 HS40 Service Manual

1.2.6. Accessories

An accessory box containing the items below is supplied with the product.

NOTE

Accessories can be

different according to the country.

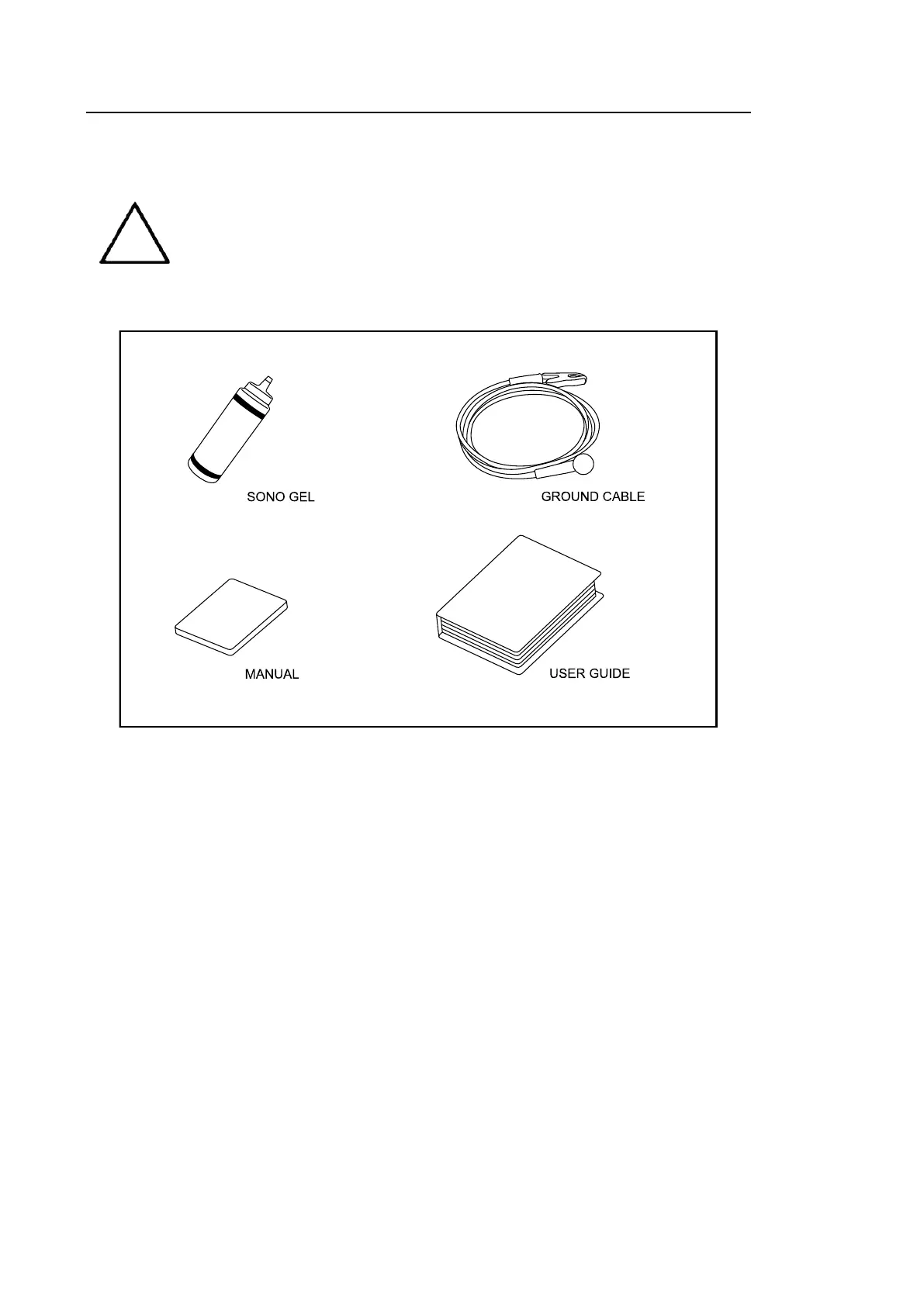

[Figure 1.11 Accessories]
