1.2.3.2. Power Connection Part
The power connection part is located at the bottom on the rear panel.

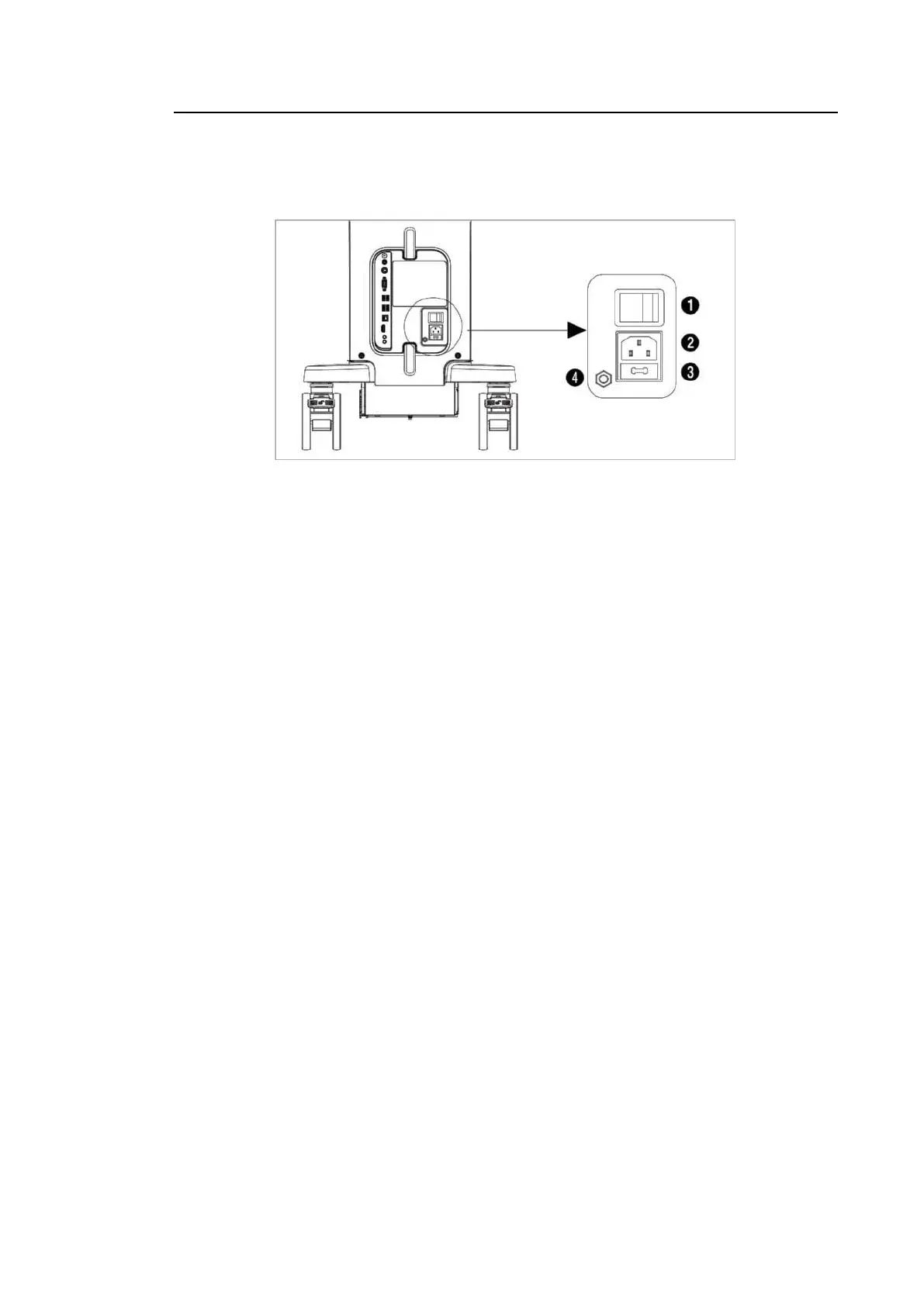

[Figure 1.8 Power Connection Part]
①
Power switch: Turns on the power of the product, and cuts off power if overcurrent or
overvoltage occurs.
②
Power inlet: Accepts the power cord, which connects to an external power supply.
③
Power fuse: Cuts off power if overcurrent or overvoltage occurs.
④
Equipotential Terminal: This should be connected to the equipotential connection part in the
exam room.
1.2.3.3. Probe Holder
Probe holders are mounted at the left and right-hand sides of the control panel.
The holders can be removed for easy cleaning.
TIP
Hockey Stick Probe Holder
Insert the Hockey stick probe holder into the probe holder to mount. It is provided as
an option.
