Chapter 3. Installing Product 3 – 9
Refer to “Table 3-2. Operational Temperature of Product” before turning the product on.
Temperature [°C] -20 -15 -10 -5 0 5 10 – 35 45 50 55 60
Waiting time
[Hour]
16 10 8 6 4 2
Use
immediately
2 4 6 10
[Table 3.2 Operational Temperature of the Product]
3.4.1.2. Connecting the Equipotential Terminal
In a hospital environment, dangerous electric currents may occur as a result of the potential
difference between a contactable conductive part and connected equipment in treatment rooms.
The solution to the problem is consistent equipotential bonding. The equipotential terminal of an
item of medical equipment must be connected to the equipotential bonding network in its
treatment room, as shown in the figure below.
3.4.1.3. Probe Connection
Be sure to turn off the power before connecting or disconnecting a probe to ensure the safe use
of the system and the probes.
1. Connect the probes to the probe connectors on the front panel of the system. Up to four (five
including CW) probes may be connected. The CW probe should only be connected to its
own dedicated connector.
2. To install it, turn the connector turning handle clockwise.

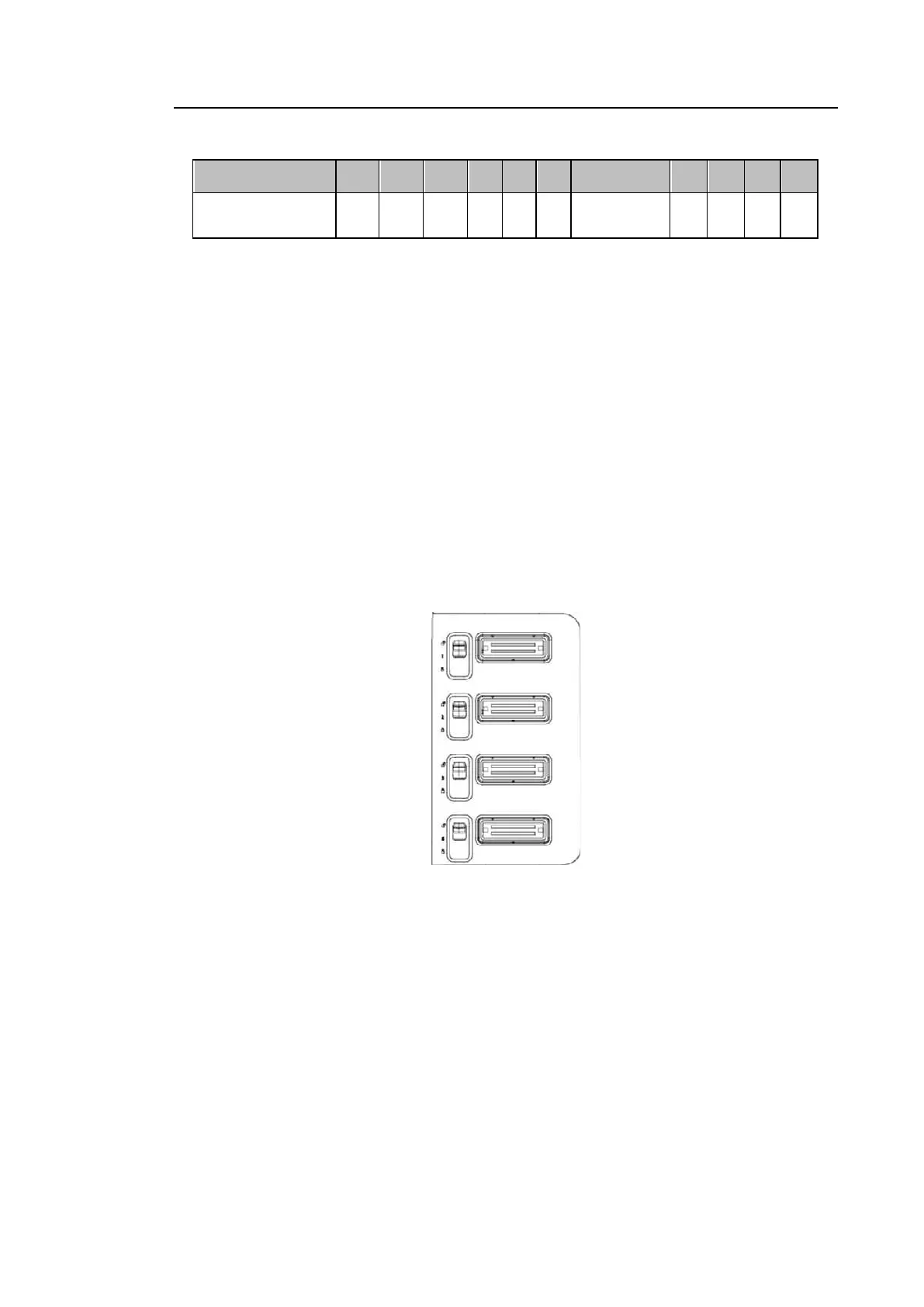

[Figure 3.4 Probe Connector]
